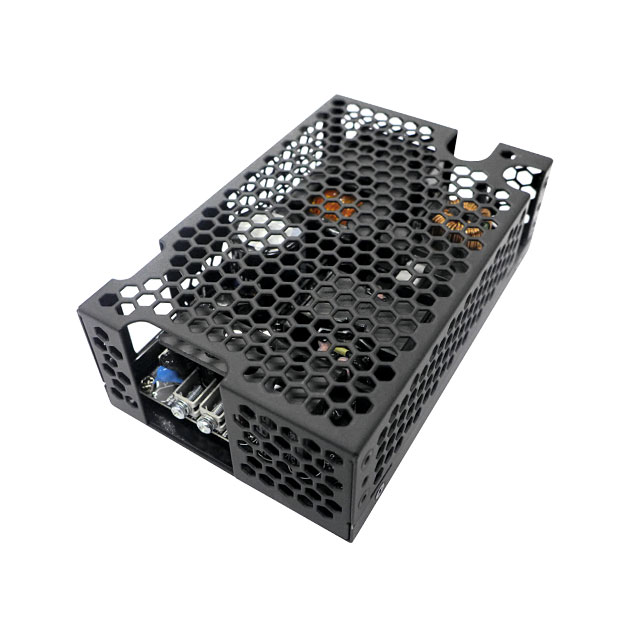

Specification	MDS-300ADB24 AA

Applications	ITE (Commercial), Medical
Approval Agency	EN, CE, TUV, UL, CB Scheme, SIQ
Current - Output 1	8.75 A
Efficiency	94 %
Features	PFC, Standby Output, Remote Sense, Remote On/Off, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-10 °C
Power (Watts)	210 W, 300 W
Size / Dimension Height	1.77 in
Size / Dimension Length	5.51 in
Size / Dimension Width	3.5 in
Standard Number	55011, 50581, 60601-1, 55032, 60950-1
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	24 V

MDS-300 Series

Part	Power (Watts)	Polarization	Efficiency	Operating Temperature (Max)	Operating Temperature (Min)	Input Connector	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Voltage - Output	Applications	Input Type	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Form	Approval Agency	Standard Number	Region Utilized	Cord Length	Current - Output (Max)	Output Connector O.D.	Output Connector	Output Connector I.D.	Output Connector Length	No Load Power Consumption (Max)	Mounting Type	Voltage - Isolation	Current - Output 1	Type	Voltage - Output 1	Efficiency	Number of Outputs	Features	Current - Output 3	Voltage - Output 3	Voltage - Output 4	Current - Output 2	Current - Output 4	Voltage - Output 2	No Load Power Consumption
Delta Electronics MDS-030AAC05 AB	15 W	Positive Center	Level VI	40 °C	0 °C	Multi-Blade (Sold Separately) NEMA 1-15P	2.11 in	3.46 in	1.06 in	5 VDC	ITE (Commercial) Medical	Fixed Blade Multi-Blade (Sold Separately)	85 VAC	264 V	Wall Mount (Class II)	CB Scheme CE EN UL	50581 55011 55032 60601-1 60950-1	North America	47.2 in	3 A	5.5 mm	Barrel Plug	2.1 mm	10 mm
Delta Electronics MDS-030AAC05 AA	15 W	Positive Center	Level VI	40 °C	0 °C	Multi-Blade (Included)	1.08 in	3.46 in	2.11 in	5 VDC	ITE (Commercial) Medical	Multi-Blade (Included)	85 VAC	264 V	Wall Mount Wall Mount (Class II)	CB CCC CE cURus UKCA	60601-1 60950-1 62368-1	International	47 in	3 A	5.5 mm	Barrel Plug	2.1 mm	10 mm	100 mW
Delta Electronics MDS-300ADB12 AA	190 W 300 W			70 °C	-10 °C		1.77 in	5.51 in	3.5 in		ITE (Commercial) Medical		90 V	264 V		CB Scheme CE EN SIQ TUV UL	50581 55011 55032 60601-1 60950-1									Chassis Mount	4000 Vpk	15.83 A	Enclosed	12 V	92.6 %	1	PFC Remote On/Off Remote Sense Standby Output Universal Input
Delta Electronics MDS-400APB12 AA	400 W			70 °C	-10 °C		1.4 in	5 in	3 in		ITE (Commercial) Medical		90 V	264 V		CB Scheme CE EN SIQ TUV UL	50581 55011 55032 60601-1 60950-1									Chassis Mount	4000 Vpk	33.33 A	Open Frame	12 V	91.5 %	1	PFC Remote On/Off Remote Sense Standby Output Universal Input
Delta Electronics MDS-100AP401 BA	100 W			70 °C	-10 °C		1.2 in	5 in	3 in		ITE (Commercial) Medical					CB Scheme CE CQC EN UL	50581 55011 55032 60601-1 60950-1									Chassis Mount	4000 Vpk	8 A	Open Frame	5.1 V	79.34 %	4	Universal Input	800 mA	-15 V	15 V	3 A	800 mA	12 V
Delta Electronics MDS-300APB48 AA	240 W 300 W			70 °C	-10 °C		1.4 in	5 in	3 in		ITE (Commercial) Medical		90 V	264 V		CB Scheme CE EN SIQ TUV UL	50581 55011 55032 60601-1 60950-1									Chassis Mount	4000 Vpk	5 A	Open Frame	48 V	93.5 %	1	PFC Remote On/Off Remote Sense Standby Output Universal Input
Delta Electronics MDS-060BAS24 AA	60 W	Positive Center	Level V	40 °C	0 °C	IEC 320-C8	1.34 in	2.44 in	5.31 in	24 V	ITE (Commercial) Medical	Cord (Sold Separately)	90 V	264 V	Desktop (Class II)		60601-1 60950-1 62368-1	International		2.5 A	5.5 mm	Barrel Plug	2.5 mm	10 mm																500 mW
Delta Electronics MDS-150AAS19 BA	150 W		Level VI	40 °C	0 °C	IEC 320-C14	1.57 in	6.69 in	3.35 in	19 V	ITE (Commercial) Medical	Cord (Sold Separately)	90 V	264 V	Desktop (Class I)	CB Scheme CE EN UL	50581 55011 55032 60601-1 60950-1	International	47.2 in	7.89 A		4 Pin Power DIN			500 mW
Delta Electronics MDS-040APS24 BA	40 W			70 °C	-10 °C		0.9 in	3 in	2 in		ITE (Commercial) Medical		90 V	264 V		CB Scheme CE EN UL	50581 55011 55032 60601-1 60950-1 62368-1									Chassis Mount	4000 Vpk	1.7 A	Open Frame	24 V	84 %	1	Standby Output Universal Input
Delta Electronics MDS-065APS15 BA	65 W			70 °C	-10 °C		1.2 in	4 in	2 in		ITE (Commercial) Medical		90 V	264 V		CB Scheme CE CQC EN UL	50581 55011 55032 60601-1 60950-1									Chassis Mount	4000 Vpk	4.2 A	Open Frame	15 V	85 %	1	Standby Output Universal Input

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MDS-300ADB24 AA | Datasheet
