6-1375583-0

Active

TE Connectivity AMP Connectors

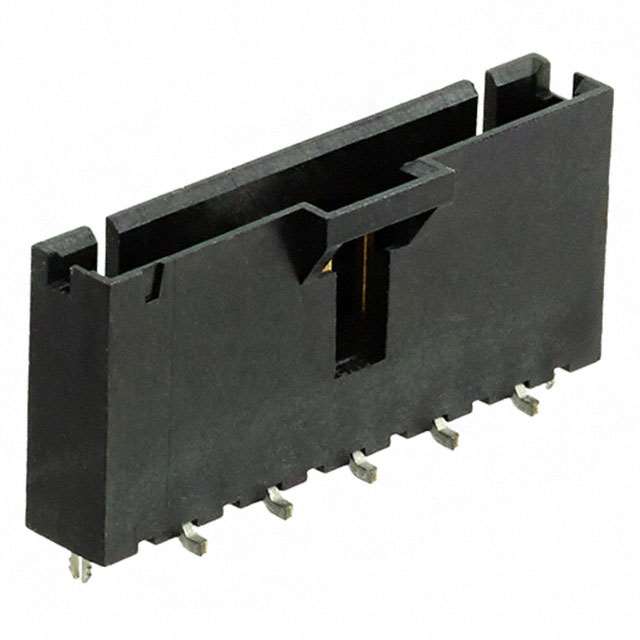

CONN HEADER SMD 11POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

6-1375583-0

Active

TE Connectivity AMP Connectors

CONN HEADER SMD 11POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	900	$ 5.21

Description

General part information

1375583 Series

Connector Header Surface Mount 11 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6-1375583-0	1375583 Series

Applications	Medical, General Purpose, Automotive, Telecommunications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	5.84 mm	5.84 mm
Contact Length - Mating [x]	0.23 in	0.23 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Latch Holder	Latch Holder
Features	Board Lock, Keying Slot	Board Lock, Keying Slot
Insulation Color	Black	Black
Insulation Height	13.6 mm	13.6 mm
Insulation Height	0.535 in	0.535 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	11	2 - 24
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

1375583 Series

CONN HEADER SMD 18POS 2.54MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Pitch - Mating	Pitch - Mating	Termination	Number of Rows	Insulation Color	Number of Positions	Applications	Contact Length - Mating [x]	Contact Length - Mating	Contact Material	Contact Type	Current Rating (Amps)	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish - Mating	Fastening Type	Material Flammability Rating	Insulation Material	Contact Shape	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Connector Type	Contact Finish - Post	Number of Positions
TE Connectivity AMP Connectors 6-1375583-7	-65 ░C	105 ░C	Surface Mount	Board Lock, Keying Slot	0.1 in	2.54 mm	Solder	1	Black	18	Automotive, General Purpose, Medical, Telecommunications	0.23 in	5.84 mm	Brass	Male Pin	3 A	13.6 mm	0.535 in	All	Gold	Latch Holder	UL94 V-0	Thermoplastic	Square	Board to Board, Cable	2.54 µm	100 µin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Header	Tin
TE Connectivity AMP Connectors 6-1375583-5	-65 ░C	105 ░C	Surface Mount	Board Lock, Keying Slot	0.1 in	2.54 mm	Solder	1	Black		Automotive, General Purpose, Medical, Telecommunications	0.23 in	5.84 mm	Brass	Male Pin	3 A	13.6 mm	0.535 in	All	Gold	Latch Holder	UL94 V-0	Thermoplastic	Square	Board to Board, Cable	2.54 µm	100 µin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Header	Tin	16
TE Connectivity AMP Connectors 1375583-9	-65 ░C	105 ░C	Surface Mount	Board Lock, Keying Slot	0.1 in	2.54 mm	Solder	1	Black	10	Automotive, General Purpose, Medical, Telecommunications	0.23 in	5.84 mm	Brass	Male Pin	3 A	13.6 mm	0.535 in	All	Gold	Latch Holder	UL94 V-0	Thermoplastic	Square	Board to Board, Cable	2.54 µm	100 µin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Header	Tin-Lead
TE Connectivity AMP Connectors 7-1375583-4	-65 ░C	105 ░C	Surface Mount	Board Lock, Keying Slot	0.1 in	2.54 mm	Solder	1	Black		Automotive, General Purpose, Medical, Telecommunications	0.23 in	5.84 mm	Brass	Male Pin	3 A	13.6 mm	0.535 in	All	Gold	Latch Holder	UL94 V-0	Thermoplastic	Square	Board to Board, Cable	2.54 µm	100 µin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Header	Tin
TE Connectivity AMP Connectors 5-1375583-4	-65 ░C	105 ░C	Surface Mount	Board Lock, Keying Slot	0.1 in	2.54 mm	Solder	1	Black		Automotive, General Purpose, Medical, Telecommunications	0.23 in	5.84 mm	Brass	Male Pin	3 A	13.6 mm	0.535 in	All	Gold	Latch Holder	UL94 V-0	Thermoplastic	Square	Board to Board, Cable	2.54 µm	100 µin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Header	Tin
TE Connectivity AMP Connectors 5-1375583-8	-65 ░C	105 ░C	Surface Mount	Board Lock, Keying Slot	0.1 in	2.54 mm	Solder	1	Black	9	Automotive, General Purpose, Medical, Telecommunications	0.23 in	5.84 mm	Brass	Male Pin	3 A	13.6 mm	0.535 in	All	Gold	Latch Holder	UL94 V-0	Thermoplastic	Square	Board to Board, Cable	2.54 µm	100 µin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Header	Tin
TE Connectivity AMP Connectors 1375583-5	-65 ░C	105 ░C	Surface Mount	Board Lock, Keying Slot	0.1 in	2.54 mm	Solder	1	Black	6	Automotive, General Purpose, Medical, Telecommunications	0.23 in	5.84 mm	Brass	Male Pin	3 A	13.6 mm	0.535 in	All	Gold	Latch Holder	UL94 V-0	Thermoplastic	Square	Board to Board, Cable	2.54 µm	100 µin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Header	Tin-Lead
TE Connectivity AMP Connectors 7-1375583-2	-65 ░C	105 ░C	Surface Mount	Board Lock, Keying Slot	0.1 in	2.54 mm	Solder	1	Black	23	Automotive, General Purpose, Medical, Telecommunications	0.23 in	5.84 mm	Brass	Male Pin	3 A	13.6 mm	0.535 in	All	Gold	Latch Holder	UL94 V-0	Thermoplastic	Square	Board to Board, Cable	2.54 µm	100 µin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Header	Tin
TE Connectivity AMP Connectors 1375583-2	-65 ░C	105 ░C	Surface Mount	Board Lock, Keying Slot	0.1 in	2.54 mm	Solder	1	Black		Automotive, General Purpose, Medical, Telecommunications	0.23 in	5.84 mm	Brass	Male Pin	3 A	13.6 mm	0.535 in	All	Gold	Latch Holder	UL94 V-0	Thermoplastic	Square	Board to Board, Cable	2.54 µm	100 µin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Header	Tin-Lead
TE Connectivity AMP Connectors 7-1375583-0	-65 ░C	105 ░C	Surface Mount	Board Lock, Keying Slot	0.1 in	2.54 mm	Solder	1	Black	21	Automotive, General Purpose, Medical, Telecommunications	0.23 in	5.84 mm	Brass	Male Pin	3 A	13.6 mm	0.535 in	All	Gold	Latch Holder	UL94 V-0	Thermoplastic	Square	Board to Board, Cable	2.54 µm	100 µin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Header	Tin
