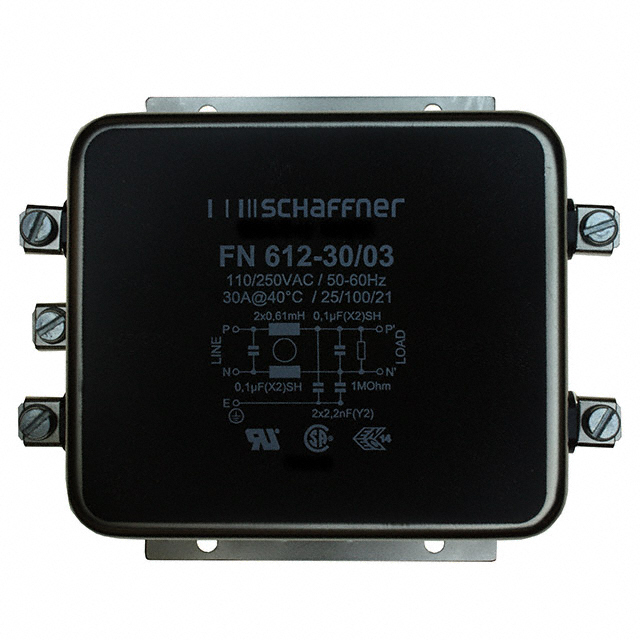

FN612-30-03
ObsoleteTE Connectivity AMP Connectors
LINE FILTER 250VAC 30A CHASS MNT
FN612-30-03
ObsoleteTE Connectivity AMP Connectors
LINE FILTER 250VAC 30A CHASS MNT
Description
General part information
FN612-30-03
Single Phase EMC/EMI Line Filter 30 A 250V DC ~ 400Hz Single Stage Terminal Block
Technical Specifications
Parameters and characteristics for this part
| Specification | FN612-30-03 |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, ENEC, UR |
| Configuration | Single Stage |
| Current | 30 A |
| Filter Type | Single Phase |
| Frequency - Operating (Max) | 400 Hz |
| Frequency - Operating (Min) | 0 Hz |
| Inductance | 610 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC | 250 V |
