Description
General part information
09151173101

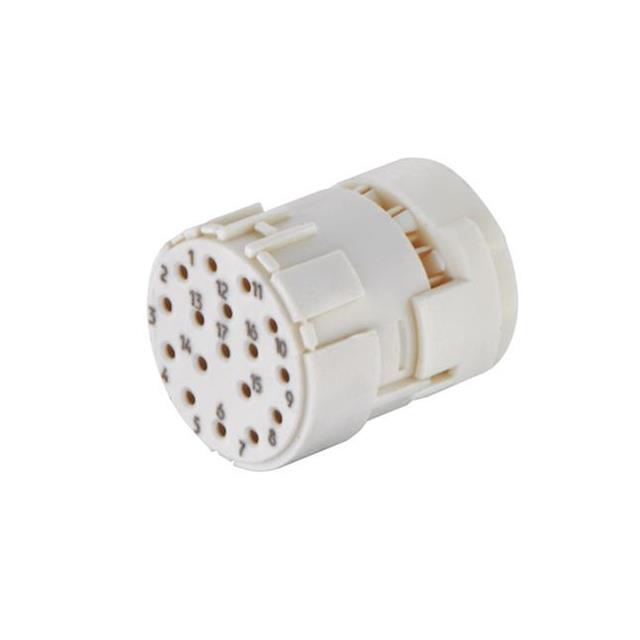

17 Position Circular Connector Insert
Technical Specifications
Parameters and characteristics for this part
| Specification | 09151173101 |
|---|---|
| Connector Type | Insert |
| Contact Shape | Circular |
| Contact Size | 1 mm |
| Contact Type | Crimp |
| Insert Material | PA, Nylon, Polyamide |
| Note | Insert Only, Contacts Not Included, Requires Shell |
| Number of Positions | 17 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Shell Size - Insert | M23-17 |
| Shielding | Unshielded |
| Type | For Female Sockets |
