0ZCA0075FF2G
ObsoleteBel Fuse Inc.
PTC RESET FUSE 6V 750MA 1206
0ZCA0075FF2G
ObsoleteBel Fuse Inc.
PTC RESET FUSE 6V 750MA 1206
Description
General part information
0ZCA0075FF2G

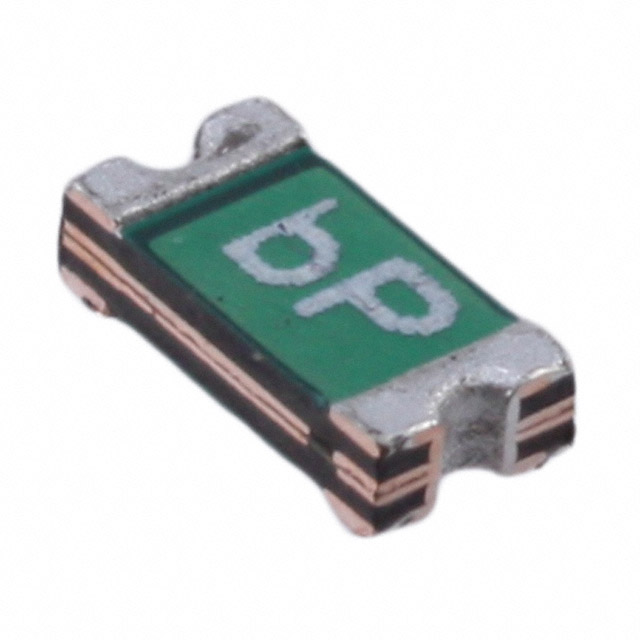

Polymeric PTC Resettable Fuse 6V 750 mA Ih Surface Mount 1206 (3216 Metric), Concave
Technical Specifications
Parameters and characteristics for this part
| Specification | 0ZCA0075FF2G |
|---|---|
| Approval Agency | cURus, TUV |
| Current - Hold (Ih) (Max) | 750 mA |
| Current - Max | 100 A |
| Current - Trip (It) | 1.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1206 (3216 Metric), Concave |
| Resistance - Initial (Ri) (Min) | 90 mOhms |
| Resistance - Post Trip (R1) (Max) | 290 mOhms |
| Size / Dimension Length | 0.128 in |
| Size / Dimension Width | 0.065 in |
| Thickness (Max) | 0.049 in |
| Time to Trip | 200 ms |
| Type | Polymeric |
| Voltage - Max | 6 V |
