880629-1

Active

TE Connectivity AMP Connectors

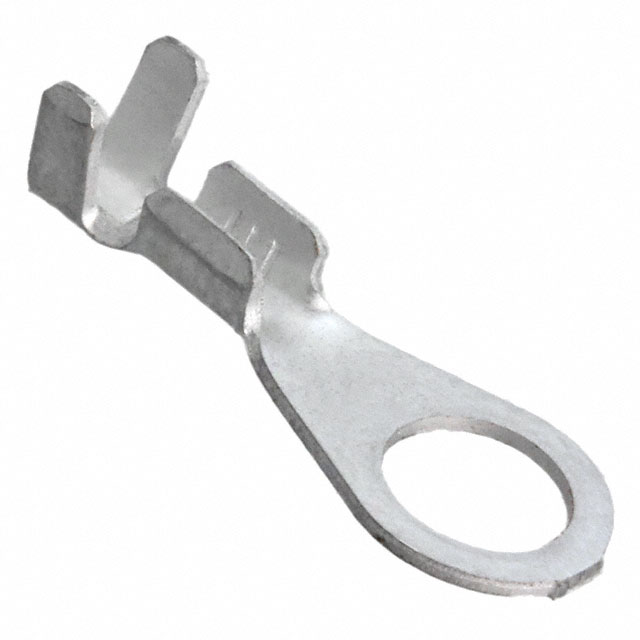

CONN RING CIRC 17-20AWG CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RING CIRC 17-20AWG CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RING CIRC 17-20AWG CRIMP

Part	Contact Material	Width - Outer Edges	Width - Outer Edges	Contact Finish	Termination	Thickness	Thickness	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Mounting Type	Insulation	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]
TE Connectivity AMP Connectors 880629-2	Brass	8 mm	0.315 in	Tin	Crimp	0.024 in	0.61 mm	0.78 in	19.81 mm	17 AWG	20 AWG	Circular	Free Hanging (In-Line)	Non-Insulated	2 mm	3.3 mm	0.13 in	0.079 in
TE Connectivity AMP Connectors 880629-1	Brass	8 mm	0.315 in		Crimp	0.024 in	0.61 mm	0.78 in	19.81 mm	17 AWG	20 AWG	Circular	Free Hanging (In-Line)	Non-Insulated	2 mm	3.3 mm	0.13 in	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.20
	Digi-Reel®	1	$ 0.20
	Tape & Reel (TR)	100000	$ 0.08

General part information

Ring Terminal Connector Circular 17-20 AWG Crimp
