SGRP-3

Unknown

TE Connectivity Aerospace, Defense and Marine

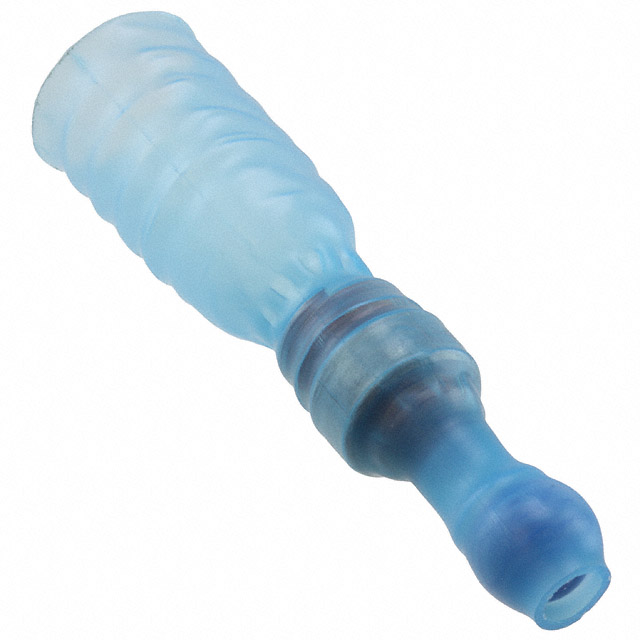

CONN WIRE CAP 7000-18000 CMA

Search across all available documentation for this part.

Unknown

TE Connectivity Aerospace, Defense and Marine

CONN WIRE CAP 7000-18000 CMA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SGRP-3	SGRP Series

Color	Blue, Blue Stripe	Blue, Blue Stripe, Blue, Green Stripe
Insulation	Fully Insulated Heat Shrink	Fully Insulated Heat Shrink
Number of Wire Entries [custom]	1	1
Terminal Type	Twist On Wire Cap	Twist On Wire Cap
Termination	Solder	Solder
Wire Gauge [Max]	18000 CMA	4800 - 18000 CMA
Wire Gauge [Min]	7000 CMA	1400 - 7000 CMA

CONN WIRE CAP 7000-18000 CMA

Part	Terminal Type	Color	Termination	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Number of Wire Entries [custom]
TE Connectivity Aerospace, Defense and Marine SGRP-3	Twist On Wire Cap	Blue, Blue Stripe	Solder	Fully Insulated Heat Shrink	18000 CMA	7000 CMA	1
TE Connectivity Aerospace, Defense and Marine SGRP-1	Twist On Wire Cap	Blue, Green Stripe	Solder	Fully Insulated Heat Shrink	4800 CMA	1400 CMA	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Twist On Wire Cap Connector Solder 7000-18000 CMA Blue, Blue Stripe
