0812KWAF
ActiveKanebridge
SELF-DRILLING SCREW - TYPE BSD -
0812KWAF
ActiveKanebridge
SELF-DRILLING SCREW - TYPE BSD -
Description
General part information
0812KWAF

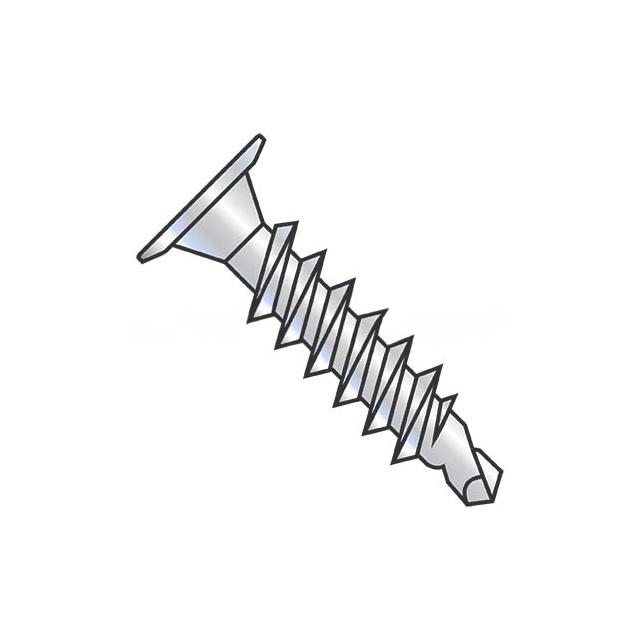

#8-18 Wafer Head Self-Drilling Screw Phillips Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 0812KWAF |
|---|---|
| Drive Type | Phillips |
| Features | Standard |
| Head Diameter | 0.37 in |
| Head Height | 0.098 in |
| Length - Below Head | 0.75 in |
| Length - Overall | 0.848 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Wafer Head |
| Thread Size (Max) | 18 mm |
| Thread Size (Min) | 8 mm |
| Type | Self-Drilling Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
