ALH685K251A082

Active

Cornell Dubilier Knowles

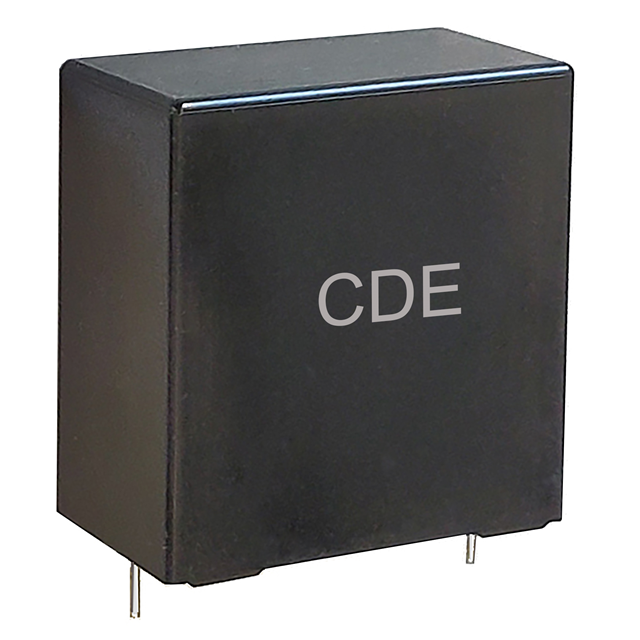

CAP FILM 6.8UF 10% 250VAC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ALH685K251A082

Active

Cornell Dubilier Knowles

CAP FILM 6.8UF 10% 250VAC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.25
		10	$ 2.89
		50	$ 2.35
		100	$ 2.33

Description

General part information

ALH Series

6.8 µF Film Capacitor 250V Polypropylene (PP) Radial

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ALH685K251A082	ALH Series

Applications	EMI, RFI Suppression, Automotive	EMI, RFI Suppression, Automotive
Capacitance	6.8 ÁF	0.22 - 680 µF
Dielectric Material	Polypropylene (PP)	Polypropylene (PP)
ESR (Equivalent Series Resistance)	4.9 mOhms	4.7 - 30.9 mOhms
Features	Long Life, Low ESR, 85C/85% Humidity, Low ESL, THB	Long Life, Low ESR, 85C/85% Humidity, Low ESL, THB
Height - Seated (Max)	-	45.8 mm
Height - Seated (Max)	-	40.8 - 51 mm
Height - Seated (Max) [Max] [z]	1.488 in	0.819 - 2.008 in
Height - Seated (Max) [Max] [z]	37.8 mm	20.8 - 46 mm
Lead Spacing	27.5 mm	27.5 - 52.5 mm
Lead Spacing	1.083 in	1.083 - 2.067 in
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial	Radial, Radial - 4 Leads
Ratings	AEC-Q200	AEC-Q200
Size / Dimension	-	13 mm
Size / Dimension [x]	32 mm	32 - 57.5 mm
Size / Dimension [x]	1.26 in	1.26 - 2.264 in
Size / Dimension [y]	0.866 in	0.433 - 1.378 in
Size / Dimension [y]	22 mm	11 - 35 mm
Termination	PC Pins	PC Pins
Tolerance	10 %	10 %
Voltage Rating - AC	250 V	160 - 450 V

ALH Series

CAP FILM 2UF 10% 250VAC RADIAL

Part	Capacitance	Tolerance	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Dielectric Material	Features	Ratings	ESR (Equivalent Series Resistance)	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Lead Spacing	Lead Spacing	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max]
Cornell Dubilier Knowles ALH205K251A032	2 µF	10 %	Automotive, EMI, RFI Suppression	-40 °C	105 ░C	250 V	Through Hole	22.8 mm	0.898 in	Radial	Polypropylene (PP)	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	AEC-Q200	8.2 mOhms	PC Pins	32 mm	13 mm	1.26 in	0.512 in	27.5 mm	1.083 in
Cornell Dubilier Knowles ALH505K401B064	5 µF	10 %	Automotive, EMI, RFI Suppression	-40 °C	105 ░C	400 V	Through Hole	37.8 mm	1.488 in	Radial - 4 Leads	Polypropylene (PP)	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	AEC-Q200	6.2 mOhms	PC Pins	42.5 mm		1.673 in	1.102 in	37.5 mm	1.476 in	28 mm
Cornell Dubilier Knowles ALH206K251B104	20 µF	10 %	Automotive, EMI, RFI Suppression	-40 °C	105 ░C	250 V	Through Hole		1.803 in	Radial - 4 Leads	Polypropylene (PP)	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	AEC-Q200	4.8 mOhms	PC Pins	42.5 mm		1.673 in	1.181 in	37.5 mm	1.476 in	30 mm	45.8 mm
