FMCA1735-24
ObsoleteFairview Microwave
CBL ASSY 1.85MMPLUG-1.85MMPLUG 2
FMCA1735-24
ObsoleteFairview Microwave
CBL ASSY 1.85MMPLUG-1.85MMPLUG 2
Description
General part information
FMCA1735-24

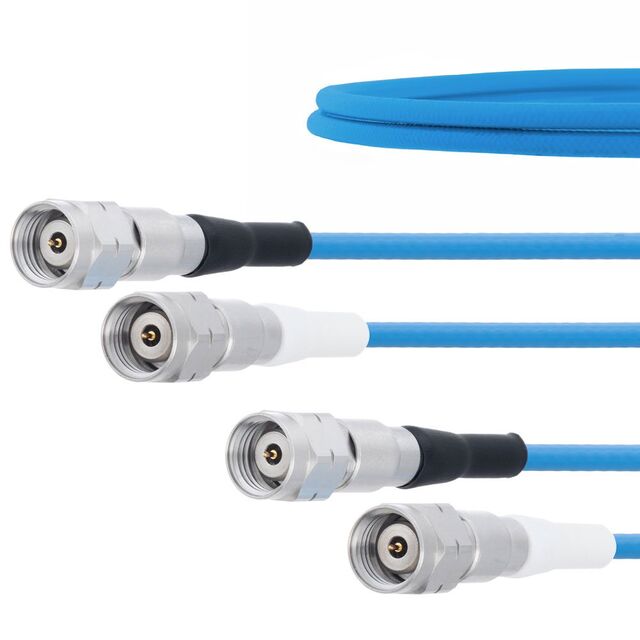

Cable Assembly Coaxial 1.85mm to 1.85mm FM-106LL 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1735-24 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 1.85 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 1.85 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 106LL, FM |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 67 GHz |
| Length | 24 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 1.85mm to 1.85mm |
