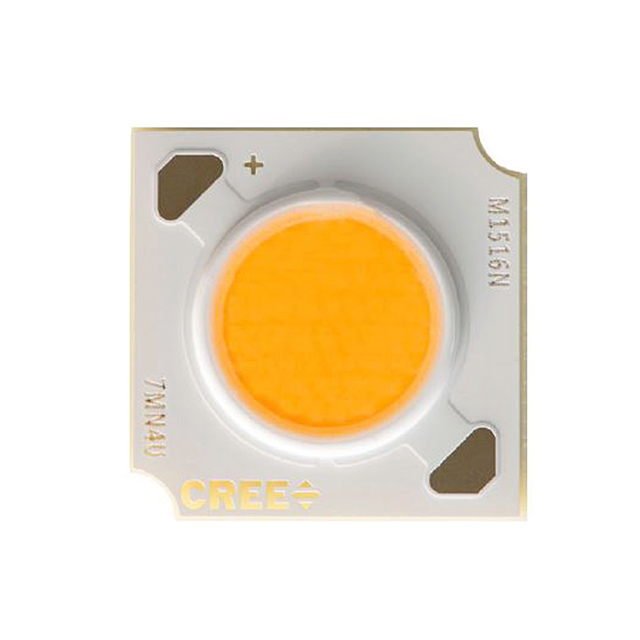

CMA1516-0000-000N0H0A50G

Active

Cree LED

LED COB XLAMP COOL WHT SQU 5000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMA1516-0000-000N0H0A50G

Active

Cree LED

LED COB XLAMP COOL WHT SQU 5000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.80
		10	$ 4.56
		50	$ 4.43
		100	$ 4.08
		200	$ 3.71
		500	$ 3.48
		1000	$ 3.20

Description

General part information

CMA1516 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMA1516 White, Cool Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMA1516-0000-000N0H0A50G	CMA1516 Series

CCT (K)	-	2200 - 5000 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	Cool, White	White, Warm, Neutral, Cool
Configuration	Square	Square
CRI (Color Rendering Index)	80	70 - 95
Current - Max [Max]	1.05 A	1.05 - 840 A
Current - Test	450 mA	450 mA
Height [z]	1.7 mm	1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	9 mm	9 mm
Lumens/Watt @ Current - Test	146 lm/W	96 - 156 lm/W
Luminous Flux @ Current/Temperature	2296 lm	1508 - 2457 lm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	35 V	34 - 35 V

CMA1516 Series

LED COB XLAMP WARM WHT SQ 3000K

Part	Height [z]	Voltage - Forward (Vf) (Typ)	Current - Test	Lens Type	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Current - Max [Max]	Type	Color	Temperature - Test	CCT (K)	Viewing Angle	Configuration	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	CCT (K)
Cree LED CMA1516-0000-00PN0U0A30U	1.7 mm	34 V	450 mA	Flat	90	9 mm	1.05 A	Chip On Board (COB)	Warm, White	85 °C	3000 K	115 °	Square
Cree LED CMA1516-0000-000N0H0A40H	1.7 mm	35 V	450 mA	Flat	80	9 mm	1.05 A	Chip On Board (COB)	Neutral, White	85 °C	4000 K	115 °	Square	2270 lm	144 lm/W
Cree LED CMA1516-0000-000N0B0A50E	1.7 mm	35 V	450 mA	Flat	70	9 mm	1.05 A	Chip On Board (COB)	Cool, White	85 °C	5000 K	115 °	Square	2457 lm	156 lm/W	5-Step MacAdam Ellipse
Cree LED CMA1516-0000-00PN0U0A30H	1.7 mm	34 V	450 mA	Flat	90	9 mm	1.05 A	Chip On Board (COB)	Warm, White	85 °C	3000 K	115 °	Square
Cree LED CMA1516-0000-000N0H0A27H	1.7 mm	35 V	450 mA	Flat	80	9 mm	1.05 A	Chip On Board (COB)	Warm, White	85 °C	2700 K	115 °	Square		131 lm/W
Cree LED CMA1516-0000-00PN0U0A35H	1.7 mm	34 V	450 mA	Flat	90	9 mm	1.05 A	Chip On Board (COB)	Warm, White	85 °C	3500 K	115 °	Square
Cree LED CMA1516-0000-000N0B0A30E	1.7 mm	35 V	450 mA	Flat	70	9 mm	1.05 A	Chip On Board (COB)	Warm, White	85 °C	3000 K	115 °	Square	2270 lm	144 lm/W
Cree LED CMA1516-0000-000N0Z0AL7C	1.7 mm	35 V	450 mA	Flat	95	9 mm	1.05 A	Chip On Board (COB)	Warm, White	85 °C	3000 K	115 °	Square	1593 lm	101 lm/W
Cree LED CMA1516-0000-000N0Z0A30H	1.7 mm	35 V	450 mA	Flat	95	9 mm	1.05 A	Chip On Board (COB)	Warm, White	85 °C	3000 K	115 °	Square	1593 lm	101 lm/W
Cree LED CMA1516-0000-000N0H0A40G	1.7 mm	35 V	450 mA	Flat	80	9 mm	1.05 A	Chip On Board (COB)	Neutral, White	85 °C	4000 K	115 °	Square	2270 lm	144 lm/W
