Description
General part information

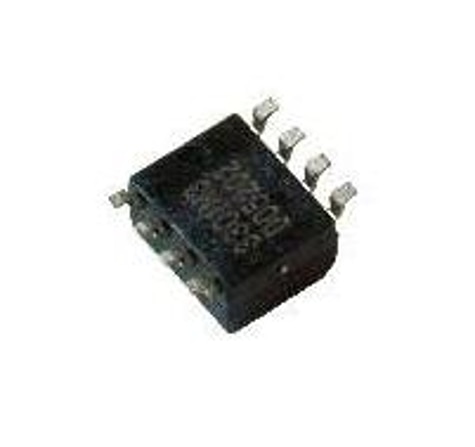

HPX100AS
Pressure Sensor 100PSI (689.48kPa) Absolute 0 mV ~ 60 mV (3V) 8-SOIC (0.154", 3.90mm Width)
Technical Specifications
Parameters and characteristics for this part
| Specification | HPX100AS |
|---|---|
| Accuracy | 0.3 % |
| Applications | Board Mount |
| Maximum Pressure | 300 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure | 100 PSI |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Wheatstone Bridge |
| Output Voltage (Max) | 60 mV |
| Output Voltage (Min) | 0 V |
| Package Length | 0.154 in |
| Package Name | 8-SOIC |
| Package Width | 3.9 mm |
| Port Style | No Port |
| Pressure Type | Absolute |
| Termination Style | Gull Wing |
| Voltage - Supply (Maximum) | 10 V |
| Voltage - Supply (Minimum) | 3 V |
