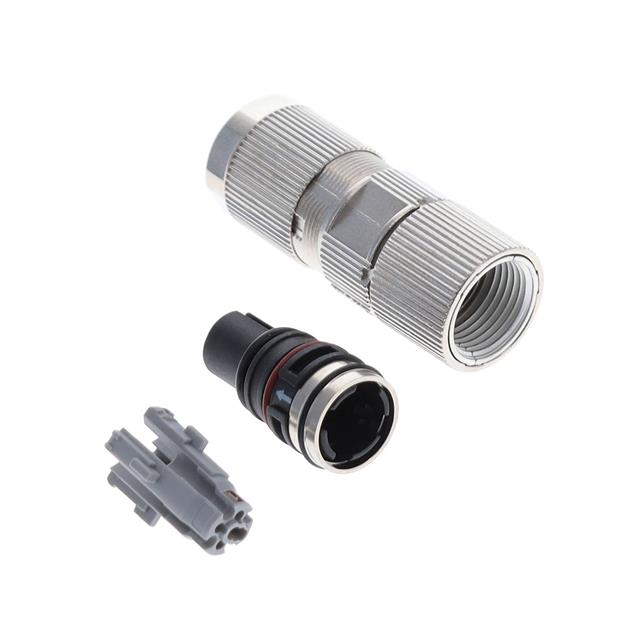

Specification	1422852

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP67, IP65
Insert Material	Polyamide, Nylon 6/6, PA66
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	5
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	A
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M12-5
Shielding	Shielded
Type	For Female Sockets
