ACF451832-680-TLD01

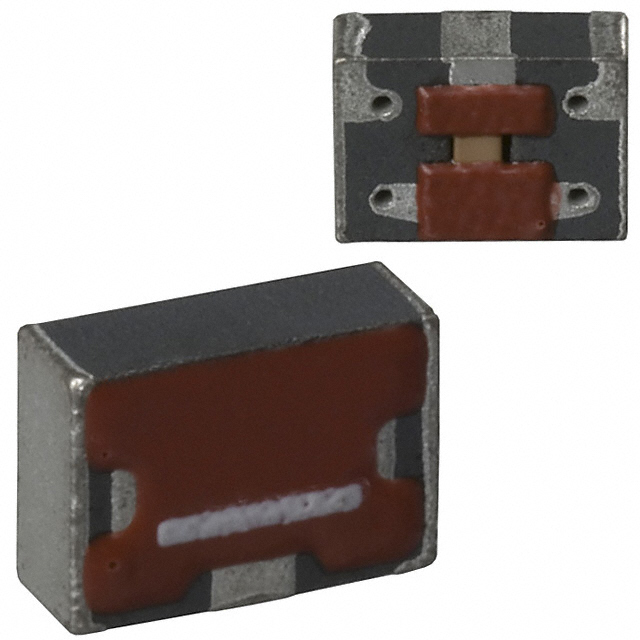

LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel 300 mA 1812 (4532 Metric), 3 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | ACF451832-680-TLD01 |
|---|---|
| Applications | Data Lines for Mobile Devices |
| Attenuation Value | 25 dB |
| Current | 300 mA |
| ESD Protection | No |
| Filter Order | 3 |
| Height | 0.079 in |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package Name | 1812 |
| Pad Count | 3 PC Pad |
| Resistance - Channel (Ohms) | 0.15 Ohm |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.126 in |
| Technology | LC (T-Type) |
| Type | Low Pass |
| Voltage - Rated | 50 V |
