INND-SS40DRCG
ActiveInolux

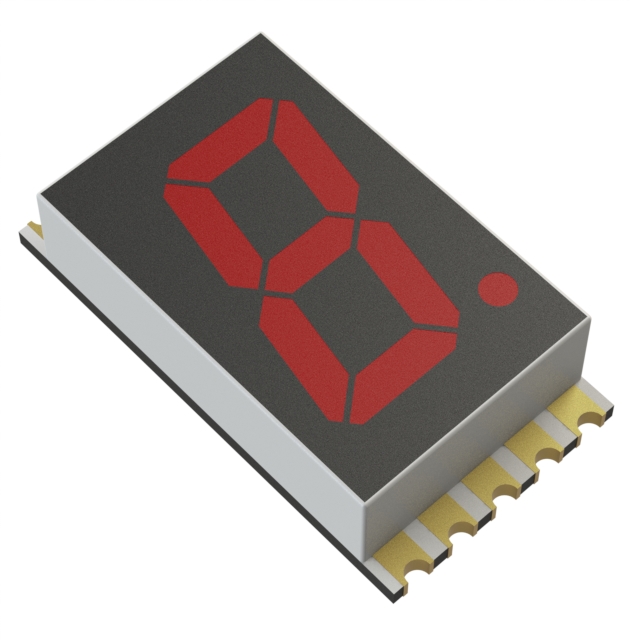

DISPLAY 7-SEG 0.4" SGL RED 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
INND-SS40DRCG
ActiveInolux
DISPLAY 7-SEG 0.4" SGL RED 10SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | INND-SS40DRCG | INND-SS40 Series |
|---|---|---|
| Color | Red | Blue, Green, Yellow, Amber, Red |
| Common Pin | Common Cathode | Common Anode, Common Cathode |
| Current - Test | 20 mA | 20 mA |
| Digit/Alpha Size | 10.16 mm | 10.16 mm |
| Digit/Alpha Size [custom] | 0.4 in | 0.4 in |
| Display Type | 7-Segment | 7-Segment |
| Millicandela Rating | 4 mcd | 4 - 13 mcd |
| Number of Characters [custom] | 1 | 1 |
| Package / Case | 10-SMD, No Lead | 10-SMD, No Lead |
| Power Dissipation (Max) [Max] | 70 mW | 70 - 114 mW |
| Size / Dimension [x] | 3.15 mm | 3.15 mm |
| Size / Dimension [x] | 0.124 in | 0.124 in |
| Size / Dimension [y] | 9.2 mm | 9.2 mm |
| Size / Dimension [y] | 0.362 in | 0.362 in |
| Size / Dimension [z] | 0.591 " | 0.591 " |
| Size / Dimension [z] | 15 mm | 15 mm |
| Voltage - Forward (Vf) (Typ) | 2 V | 2 - 3.2 V |
| Wavelength - Peak | 660 nm | 465 - 660 nm |
INND-SS40 Series
DISPLAY 7SEG 0.4" SGL BLUE 10SMD
| Part | Voltage - Forward (Vf) (Typ) | Common Pin | Power Dissipation (Max) [Max] | Current - Test | Millicandela Rating | Wavelength - Peak | Color | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Package / Case | Display Type | Digit/Alpha Size | Digit/Alpha Size [custom] | Number of Characters [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Inolux INND-SS40BAB | 3.2 V | Common Anode | 114 mW | 20 mA | 7 mcd | 465 nm | Blue | 3.15 mm | 0.591 " | 9.2 mm | 0.124 in | 0.362 in | 15 mm | 10-SMD, No Lead | 7-Segment | 10.16 mm | 0.4 in | 1 |
Inolux INND-SS40GCG | 3.2 V | Common Cathode | 114 mW | 20 mA | 4 mcd | 525 nm | Green | 3.15 mm | 0.591 " | 9.2 mm | 0.124 in | 0.362 in | 15 mm | 10-SMD, No Lead | 7-Segment | 10.16 mm | 0.4 in | 1 |
Inolux INND-SS40YAB | 2 V | Common Anode | 70 mW | 20 mA | 13 mcd | 592 nm | Yellow | 3.15 mm | 0.591 " | 9.2 mm | 0.124 in | 0.362 in | 15 mm | 10-SMD, No Lead | 7-Segment | 10.16 mm | 0.4 in | 1 |
Inolux INND-SS40GCB | 3.2 V | Common Cathode | 114 mW | 20 mA | 4 mcd | 525 nm | Green | 3.15 mm | 0.591 " | 9.2 mm | 0.124 in | 0.362 in | 15 mm | 10-SMD, No Lead | 7-Segment | 10.16 mm | 0.4 in | 1 |
Inolux INND-SS40YCG | 2 V | Common Cathode | 70 mW | 20 mA | 13 mcd | 592 nm | Yellow | 3.15 mm | 0.591 " | 9.2 mm | 0.124 in | 0.362 in | 15 mm | 10-SMD, No Lead | 7-Segment | 10.16 mm | 0.4 in | 1 |
Inolux INND-SS40AAG | 2 V | Common Anode | 70 mW | 20 mA | 13 mcd | Amber | 3.15 mm | 0.591 " | 9.2 mm | 0.124 in | 0.362 in | 15 mm | 10-SMD, No Lead | 7-Segment | 10.16 mm | 0.4 in | 1 | |
Inolux INND-SS40AAB | 2 V | Common Anode | 70 mW | 20 mA | 13 mcd | Amber | 3.15 mm | 0.591 " | 9.2 mm | 0.124 in | 0.362 in | 15 mm | 10-SMD, No Lead | 7-Segment | 10.16 mm | 0.4 in | 1 | |
Inolux INND-SS40DRCG | 2 V | Common Cathode | 70 mW | 20 mA | 4 mcd | 660 nm | Red | 3.15 mm | 0.591 " | 9.2 mm | 0.124 in | 0.362 in | 15 mm | 10-SMD, No Lead | 7-Segment | 10.16 mm | 0.4 in | 1 |
Inolux INND-SS40GAB | 3.2 V | Common Anode | 114 mW | 20 mA | 4 mcd | 525 nm | Green | 3.15 mm | 0.591 " | 9.2 mm | 0.124 in | 0.362 in | 15 mm | 10-SMD, No Lead | 7-Segment | 10.16 mm | 0.4 in | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 5000 | $ 0.60 | |
Description
General part information
INND-SS40 Series
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.591" H x 0.362" W x 0.124" D (15.00mm x 9.20mm x 3.15mm) 10-SMD, No Lead
