1770403
ObsoletePhoenix Contact

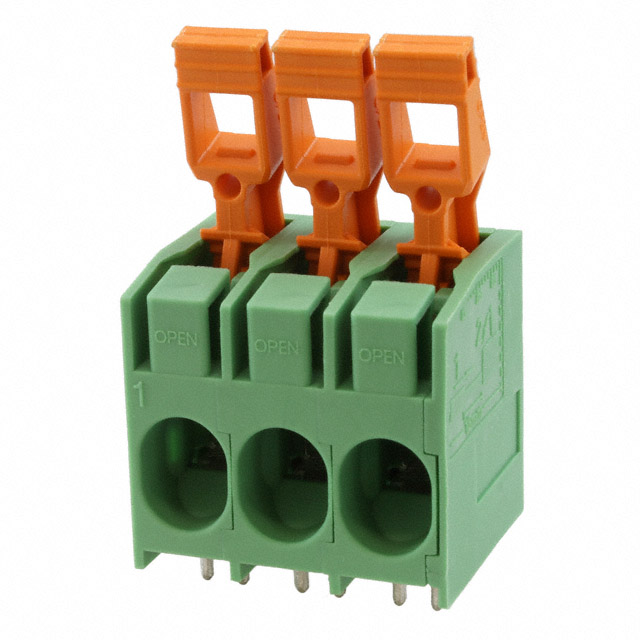

TERM BLK 3P SIDE ENTRY 10MM PCB
1770403
ObsoletePhoenix Contact
TERM BLK 3P SIDE ENTRY 10MM PCB
Description
General part information
1770403
3 Position Wire to Board Terminal Block Horizontal with Board 0.394" (10.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1770403 |
|---|---|
| Color | Green |
| Current | 51 A |
| Features | Interlocking (Side), Lever Actuated |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.394 in |
| Positions Per Level | 3 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 6 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
