RVCA2512JT620K
ActiveStackpole Electronics Inc
RES, HV, 2512, 620 KOHM, 5%, 1W,
RVCA2512JT620K
ActiveStackpole Electronics Inc
RES, HV, 2512, 620 KOHM, 5%, 1W,
Description
General part information
RVCA2512JT620K

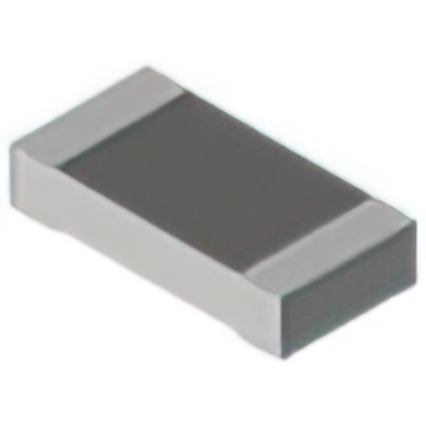

620 kOhms ±5% 1W Chip Resistor 2512 (6432 Metric) Anti-Sulfur, Automotive AEC-Q200, High Voltage Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RVCA2512JT620K |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Anti-Sulfur, High Voltage |
| Height - Seated (Max) | 0.026 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2512 (6432 Metric) |
| Package Name | 2512 |
| Power (Watts) | 1 W |
| Ratings | AEC-Q200 |
| Resistance | 620 kOhm |
| Size / Dimension Length | 0.25 in |
| Size / Dimension Width | 0.122 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
