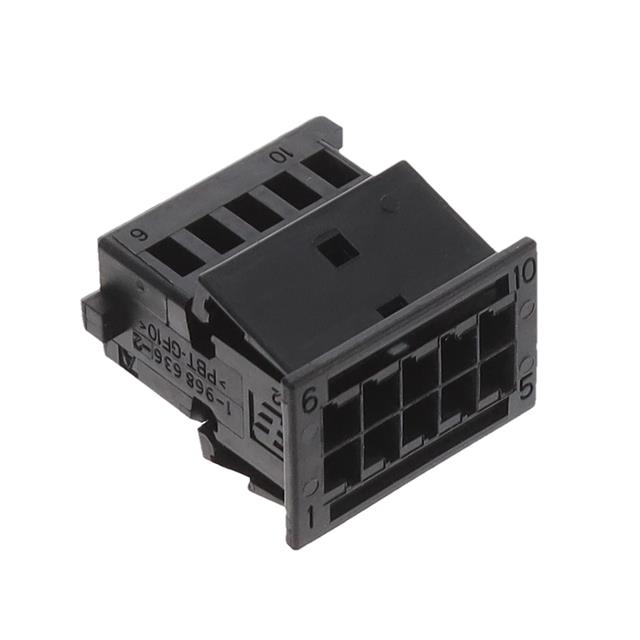

1-968636-2
ActiveTE Connectivity AMP Connectors
MQS BU-GEH 10P,SW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-968636-2
ActiveTE Connectivity AMP Connectors
MQS BU-GEH 10P,SW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-968636-2 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Terminal Position Lock (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 0.232 in |
| Row Spacing | 5.9 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.47 | |
| 10 | $ 1.12 | |||
| 25 | $ 1.01 | |||
| 50 | $ 0.93 | |||
| 100 | $ 0.86 | |||
| 250 | $ 0.78 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.67 | |||
| 2500 | $ 0.63 | |||
968636 Series
MQS BU-GEH 10P,SW
| Part | Insulation Material | Contact Termination | Color | Features | Number of Rows | Number of Positions | Connector Type | Contact Type | Fastening Type | Row Spacing | Row Spacing | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-968636-2 | Polybutylene Terephthalate (PBT), Glass Filled | Crimp | Black | Terminal Position Lock (TPA) | 2 | 10 | Receptacle | Female Socket | Latch Lock | 0.232 in | 5.9 mm | 2.54 mm | 0.1 in | -40 °C | 120 °C | Free Hanging (In-Line) |
Description
General part information
968636 Series
10 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
