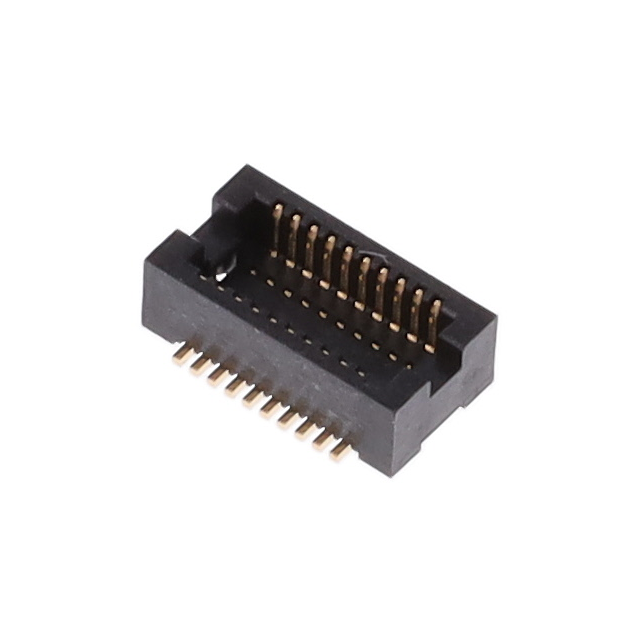

Specification	DF12NC(3.0)-20DP-0.5V(51)

Connector Type	Outer Shroud Contacts, Header
Contact Finish	Gold
Contact Finish Thickness	8 µin
Height Above Board	0.091 in
Mated Stacking Height	3 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch	0.02 in

DF12NC(3.0) Series

Part	Mounting Type	Contact Finish	Number of Rows	Mated Stacking Height	Contact Finish Thickness	Pitch	Height Above Board	Number of Positions	Connector Type
Hirose Electric Co Ltd DF12NC(3.0)-10DP-0.5V(51)	Surface Mount	Gold	2	3 mm	8 µin	0.02 in	0.091 in	10	Header Outer Shroud Contacts
Hirose Electric Co Ltd DF12NC(3.0)-80DS-0.5V(51)	Surface Mount	Gold	2	3 mm	8 µin	0.02 in	0.087 in	80	Center Strip Contacts Receptacle
Hirose Electric Co Ltd DF12NC(3.0)-10DS-0.5V(51)	Surface Mount	Gold	2	3 mm	8 µin	0.02 in	0.087 in	10	Center Strip Contacts Receptacle
Hirose Electric Co Ltd DF12NC(3.0)-36DS-0.5V(51)	Surface Mount	Gold	2	3 mm	8 µin	0.02 in	0.087 in	36	Center Strip Contacts Receptacle
Hirose Electric Co Ltd DF12NC(3.0)-60DS-0.5V(51)	Surface Mount	Gold	2	3 mm	8 µin	0.02 in	0.087 in	60	Center Strip Contacts Receptacle
Hirose Electric Co Ltd DF12NC(3.0)-32DP-0.5V(51)	Surface Mount	Gold	2	3 mm	8 µin	0.02 in	0.091 in	32	Header Outer Shroud Contacts
Hirose Electric Co Ltd DF12NC(3.0)-40DS-0.5V(51)	Surface Mount	Gold	2	3 mm	8 µin	0.02 in	0.087 in	40	Center Strip Contacts Receptacle
Hirose Electric Co Ltd DF12NC(3.0)-50DP-0.5V(96)	Surface Mount	Gold	2	3 mm	8 µin	0.02 in	0.091 in	50	Header Outer Shroud Contacts
Hirose Electric Co Ltd DF12NC(3.0)-40DP-0.5V(51)	Surface Mount	Gold	2	3 mm	8 µin	0.02 in	0.091 in	40	Header Outer Shroud Contacts
Hirose Electric Co Ltd DF12NC(3.0)-60DP-0.5V(51)	Surface Mount	Gold	2	3 mm	8 µin	0.02 in	0.091 in	60	Header Outer Shroud Contacts
