LBW6L-M1T54R

Active

IDEC Corporation

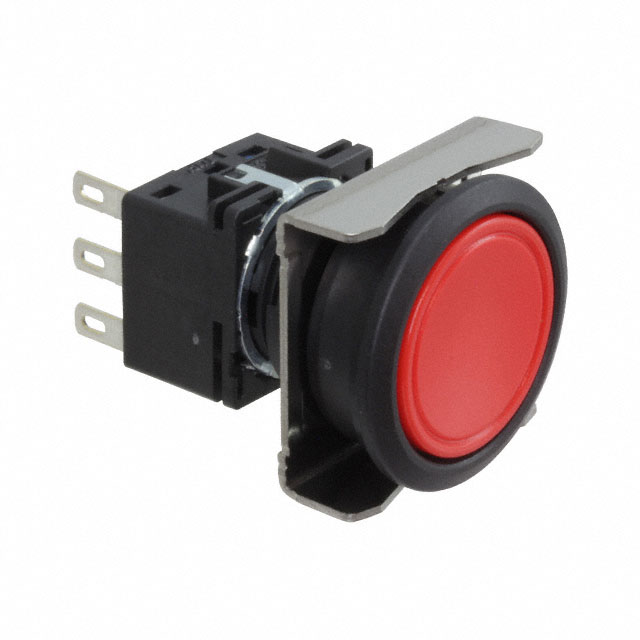

INDUSTRIAL PUSHBUTTON SWITCH, LBW SERIES, 22 MM, SPDT, MOMENTARY, ROUND FLUSH, TRANSPARENT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

LBW6L-M1T54R

Active

IDEC Corporation

INDUSTRIAL PUSHBUTTON SWITCH, LBW SERIES, 22 MM, SPDT, MOMENTARY, ROUND FLUSH, TRANSPARENT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.97
Newark	Each	1	$ 49.93
		5	$ 46.13
		10	$ 42.77
		25	$ 39.41
		50	$ 36.95
		100	$ 34.93
		250	$ 31.80

Description

General part information

LBW6L Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Specification	LBW6L-M1T54R	LBW6L Series

(Select First, Then Apply Filters) Compatible Series	-	IDEC, LBW
Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round, Pushbutton, Round
Circuit	SPDT	SPDT, DPDT
Color - Actuator/Cap	Clear	Clear, White, Yellow
Current Rating (Amps)	5 A	5 - 100 mA
Electrical Life	50000 Cycles	50000 Cycles
Illumination	-	Illuminated
Illumination Type, Color	Red, LED	LED, Blue, White, Yellow, Amber, Green, Red
Illumination Voltage (Nominal)	24 VAC/DC	24 VAC/DC
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	2000000 Cycles	250000 - 2000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions	-	22.3 mm
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Requires	-	Contact Block(s), Illumination Source, Lens
Switch Function	On-Mom	On-Mom, On-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder, PC Pin
Termination Style	2.8 mm	2.8 mm
Type	Illuminated, Standard	Illuminated, Standard, Maintained, Momentary
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

Part

Mounting Type

Actuator Marking

Panel Cutout Dimensions [diameter]

Actuator Type

Type

Mechanical Life

Electrical Life

Voltage Rating - DC

Circuit

Color - Actuator/Cap

Operating Temperature [Max]

Operating Temperature [Min]

Illumination Type, Color

Voltage Rating - AC

Termination Style

Switch Function

Ingress Protection

Illumination Voltage (Nominal)

Current Rating (Amps)

Panel Cutout Dimensions

Requires

Illumination

(Select First, Then Apply Filters) Compatible Series

IDEC Corporation

LBW6L-M1T14S

Panel Mount, Front

No Marking

22.3 mm

Button, Flush, Round

Illuminated, Standard

2000000 Cycles

50000 Cycles

30 V

SPDT

Clear

55 °C

-25 °C

Blue, LED

125 V

0.11 in

Quick Connect, Solder

2.8 mm

On-Mom

IP65 - Dust Tight, Water Resistant

24 VAC/DC

100 mA

IDEC Corporation

LBW6L-A1T14VW

Panel Mount, Front

No Marking

22.3 mm

Button, Flush, Round

Illuminated, Standard

250000 Cycles

50000 Cycles

30 V

SPDT

White

55 °C

-25 °C

LED, White

125 V

PC Pin

On-On

IP65 - Dust Tight, Water Resistant

24 VAC/DC

100 mA

IDEC Corporation

LBW6L-M1T24VY

Panel Mount, Front

No Marking

22.3 mm

Button, Flush, Round

Illuminated, Standard

2000000 Cycles

50000 Cycles

30 V

DPDT

Yellow

55 °C

-25 °C

LED, Yellow

125 V

PC Pin

On-Mom

IP65 - Dust Tight, Water Resistant

24 VAC/DC

100 mA

IDEC Corporation

LBW6L-M1T54W

Panel Mount, Front

No Marking

22.3 mm

Button, Flush, Round

Illuminated, Standard

2000000 Cycles

50000 Cycles

30 V

SPDT

White

55 °C

-25 °C

LED, White

125 V

0.11 in

Quick Connect, Solder

2.8 mm

On-Mom

IP65 - Dust Tight, Water Resistant

24 VAC/DC

5 A

IDEC Corporation

LBW6L-A1T54A

Panel Mount, Front

No Marking

22.3 mm

Button, Flush, Round

Illuminated, Standard

250000 Cycles

50000 Cycles

30 V

SPDT

Clear

55 °C

-25 °C

Amber, LED

125 V

0.11 in

Quick Connect, Solder

2.8 mm

On-On

IP65 - Dust Tight, Water Resistant

24 VAC/DC

5 A

IDEC Corporation

LBW6L-M1T64PW

Panel Mount, Front

No Marking

22.3 mm

Button, Flush, Round

Illuminated, Standard

2000000 Cycles

50000 Cycles

30 V

DPDT

White

55 °C

-25 °C

LED, White

125 V

0.11 in

Quick Connect, Solder

2.8 mm

On-Mom

IP65 - Dust Tight, Water Resistant

24 VAC/DC

5 A

IDEC Corporation

LBW6L-A1T64S

Panel Mount, Front

No Marking

22.3 mm

Button, Flush, Round

Illuminated, Standard

250000 Cycles

50000 Cycles

30 V

DPDT

Clear

55 °C

-25 °C

Blue, LED

125 V

0.11 in

Quick Connect, Solder

2.8 mm

On-On

IP65 - Dust Tight, Water Resistant

24 VAC/DC

5 A

IDEC Corporation

LBW6L-A1T64PW

Panel Mount, Front

No Marking

22.3 mm

Button, Flush, Round

Illuminated, Standard

250000 Cycles

50000 Cycles

30 V

DPDT

White

55 °C

-25 °C

LED, White

125 V

0.11 in

Quick Connect, Solder

2.8 mm

On-On

IP65 - Dust Tight, Water Resistant

24 VAC/DC

5 A

IDEC Corporation

LBW6L-A1T24VW

Panel Mount, Front

No Marking

22.3 mm

Button, Flush, Round

Illuminated, Standard

250000 Cycles

50000 Cycles

30 V

DPDT

White

55 °C

-25 °C

LED, White

125 V

PC Pin

On-On

IP65 - Dust Tight, Water Resistant

24 VAC/DC

100 mA

IDEC Corporation

LBW6L-A1T54G

Panel Mount, Front

No Marking

22.3 mm

Button, Flush, Round

Illuminated, Standard

250000 Cycles

50000 Cycles

30 V

SPDT

Clear

55 °C

-25 °C

Green, LED

125 V

0.11 in

Quick Connect, Solder

2.8 mm

On-On

IP65 - Dust Tight, Water Resistant

24 VAC/DC

5 A

Part	Mounting Type	Actuator Marking	Panel Cutout Dimensions [diameter]	Actuator Type	Type	Mechanical Life	Electrical Life	Voltage Rating - DC	Circuit	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Voltage Rating - AC	Termination Style	Termination Style	Termination Style	Switch Function	Ingress Protection	Illumination Voltage (Nominal)	Current Rating (Amps)
IDEC Corporation LBW6L-M1T14S	Panel Mount, Front	No Marking	22.3 mm	Button, Flush, Round	Illuminated, Standard	2000000 Cycles	50000 Cycles	30 V	SPDT	Clear	55 °C	-25 °C	Blue, LED	125 V	0.11 in	Quick Connect, Solder	2.8 mm	On-Mom	IP65 - Dust Tight, Water Resistant	24 VAC/DC	100 mA
IDEC Corporation LBW6L-A1T14VW	Panel Mount, Front	No Marking	22.3 mm	Button, Flush, Round	Illuminated, Standard	250000 Cycles	50000 Cycles	30 V	SPDT	White	55 °C	-25 °C	LED, White	125 V		PC Pin		On-On	IP65 - Dust Tight, Water Resistant	24 VAC/DC	100 mA
IDEC Corporation LBW6L-M1T24VY	Panel Mount, Front	No Marking	22.3 mm	Button, Flush, Round	Illuminated, Standard	2000000 Cycles	50000 Cycles	30 V	DPDT	Yellow	55 °C	-25 °C	LED, Yellow	125 V		PC Pin		On-Mom	IP65 - Dust Tight, Water Resistant	24 VAC/DC	100 mA
IDEC Corporation LBW6L-M1T54W	Panel Mount, Front	No Marking	22.3 mm	Button, Flush, Round	Illuminated, Standard	2000000 Cycles	50000 Cycles	30 V	SPDT	White	55 °C	-25 °C	LED, White	125 V	0.11 in	Quick Connect, Solder	2.8 mm	On-Mom	IP65 - Dust Tight, Water Resistant	24 VAC/DC	5 A
IDEC Corporation LBW6L-A1T54A	Panel Mount, Front	No Marking	22.3 mm	Button, Flush, Round	Illuminated, Standard	250000 Cycles	50000 Cycles	30 V	SPDT	Clear	55 °C	-25 °C	Amber, LED	125 V	0.11 in	Quick Connect, Solder	2.8 mm	On-On	IP65 - Dust Tight, Water Resistant	24 VAC/DC	5 A
IDEC Corporation LBW6L-M1T64PW	Panel Mount, Front	No Marking	22.3 mm	Button, Flush, Round	Illuminated, Standard	2000000 Cycles	50000 Cycles	30 V	DPDT	White	55 °C	-25 °C	LED, White	125 V	0.11 in	Quick Connect, Solder	2.8 mm	On-Mom	IP65 - Dust Tight, Water Resistant	24 VAC/DC	5 A
IDEC Corporation LBW6L-A1T64S	Panel Mount, Front	No Marking	22.3 mm	Button, Flush, Round	Illuminated, Standard	250000 Cycles	50000 Cycles	30 V	DPDT	Clear	55 °C	-25 °C	Blue, LED	125 V	0.11 in	Quick Connect, Solder	2.8 mm	On-On	IP65 - Dust Tight, Water Resistant	24 VAC/DC	5 A
IDEC Corporation LBW6L-A1T64PW	Panel Mount, Front	No Marking	22.3 mm	Button, Flush, Round	Illuminated, Standard	250000 Cycles	50000 Cycles	30 V	DPDT	White	55 °C	-25 °C	LED, White	125 V	0.11 in	Quick Connect, Solder	2.8 mm	On-On	IP65 - Dust Tight, Water Resistant	24 VAC/DC	5 A
IDEC Corporation LBW6L-A1T24VW	Panel Mount, Front	No Marking	22.3 mm	Button, Flush, Round	Illuminated, Standard	250000 Cycles	50000 Cycles	30 V	DPDT	White	55 °C	-25 °C	LED, White	125 V		PC Pin		On-On	IP65 - Dust Tight, Water Resistant	24 VAC/DC	100 mA
IDEC Corporation LBW6L-A1T54G	Panel Mount, Front	No Marking	22.3 mm	Button, Flush, Round	Illuminated, Standard	250000 Cycles	50000 Cycles	30 V	SPDT	Clear	55 °C	-25 °C	Green, LED	125 V	0.11 in	Quick Connect, Solder	2.8 mm	On-On	IP65 - Dust Tight, Water Resistant	24 VAC/DC	5 A
