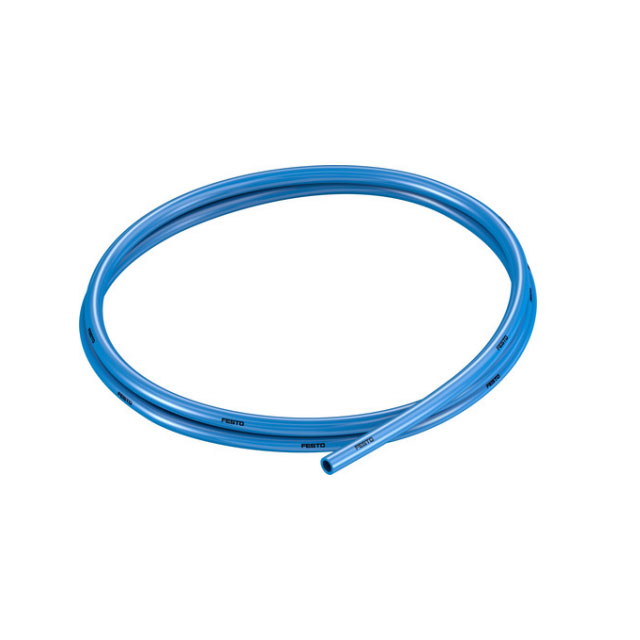

PUN-H-6X1-BL

Active

Festo Corporation

PNEUMATIC TUBING, 50M, 10BAR, PU, BLUE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Festo Corporation

PNEUMATIC TUBING, 50M, 10BAR, PU, BLUE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	PUN-H-6X1-BL

Bend Radius (Flow) [radius]	26 mm
Bend Radius (Flow) [radius]	1.024 in
Color	Blue
Fluid Type	Compressed Air, Water
Inner Diameter [diameter]	0.157 in
Inner Diameter [diameter]	4 mm
Length	164 ft
Length	50 m
Material	Thermoplastic Polyurethane (TPE-U)
Minimum Bend Radius [radius]	0.394 in
Minimum Bend Radius [radius]	10 mm
Operating Pressure [Max]	145 PSI, 10 bar
Operating Pressure [Min]	-1 bar
Operating Pressure [Min]	-14 PSI
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-35 °C
Outer Diameter [diameter]	6 mm
Outer Diameter [diameter]	0.236 in
Type	Tubing

PNEUMATIC TUBING, 50M, 10BAR, PU, BLUE ROHS COMPLIANT: YES

Part	Inner Diameter [diameter]	Inner Diameter [diameter]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Bend Radius (Flow) [radius]	Bend Radius (Flow) [radius]	Type	Minimum Bend Radius [radius]	Minimum Bend Radius [radius]	Material	Outer Diameter [diameter]	Outer Diameter [diameter]	Fluid Type	Length	Length
Festo Corporation PUN-H-6X1-BL	0.157 in	4 mm	-1 bar	10 bar, 145 PSI	-14 PSI	-35 °C	60 °C	Blue	26 mm	1.024 in	Tubing	0.394 in	10 mm	Thermoplastic Polyurethane (TPE-U)	6 mm	0.236 in	Compressed Air, Water	164 ft	50 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PNEUMATIC TUBING, 50M, 10BAR, PU, BLUE ROHS COMPLIANT: YES
