PI5USB31213XEAEX
ActiveNRND = NOT RECOMMENDED FOR NEW DESIGN
Deep-Dive with AI
Search across all available documentation for this part.
PI5USB31213XEAEX
ActiveNRND = NOT RECOMMENDED FOR NEW DESIGN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI5USB31213XEAEX |
|---|---|
| Applications | USB, Type-C Configuration |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |

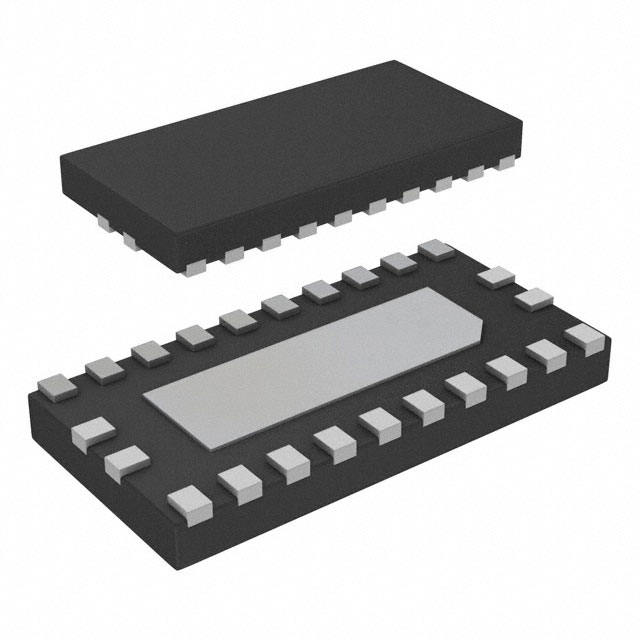

| Package / Case | 24-XFQFN Exposed Pad |
| Supplier Device Package | 24-X1QFN (2x4) |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.09 | |
| Digi-Reel® | 1 | $ 3.09 | ||
| Tape & Reel (TR) | 3500 | $ 0.97 | ||
| 7000 | $ 0.92 | |||
| 10500 | $ 0.90 | |||
Description
General part information
PI5USB31213A Series
The PI5USB31213 is a 10Gbps dual differential channel bi-directional multiplexer/de-multiplexer switch solution for USB 3.1 Gen 2 Type-C connector applications. PI5USB31213 switches between the USB controller and the new Type-C connector. It supports host mode, device mode and dual-role mode ports with automatic configuration based on the voltage levels detected on CC pin. It offers excellent signal integrity for high-speed signals at low power dissipation.
