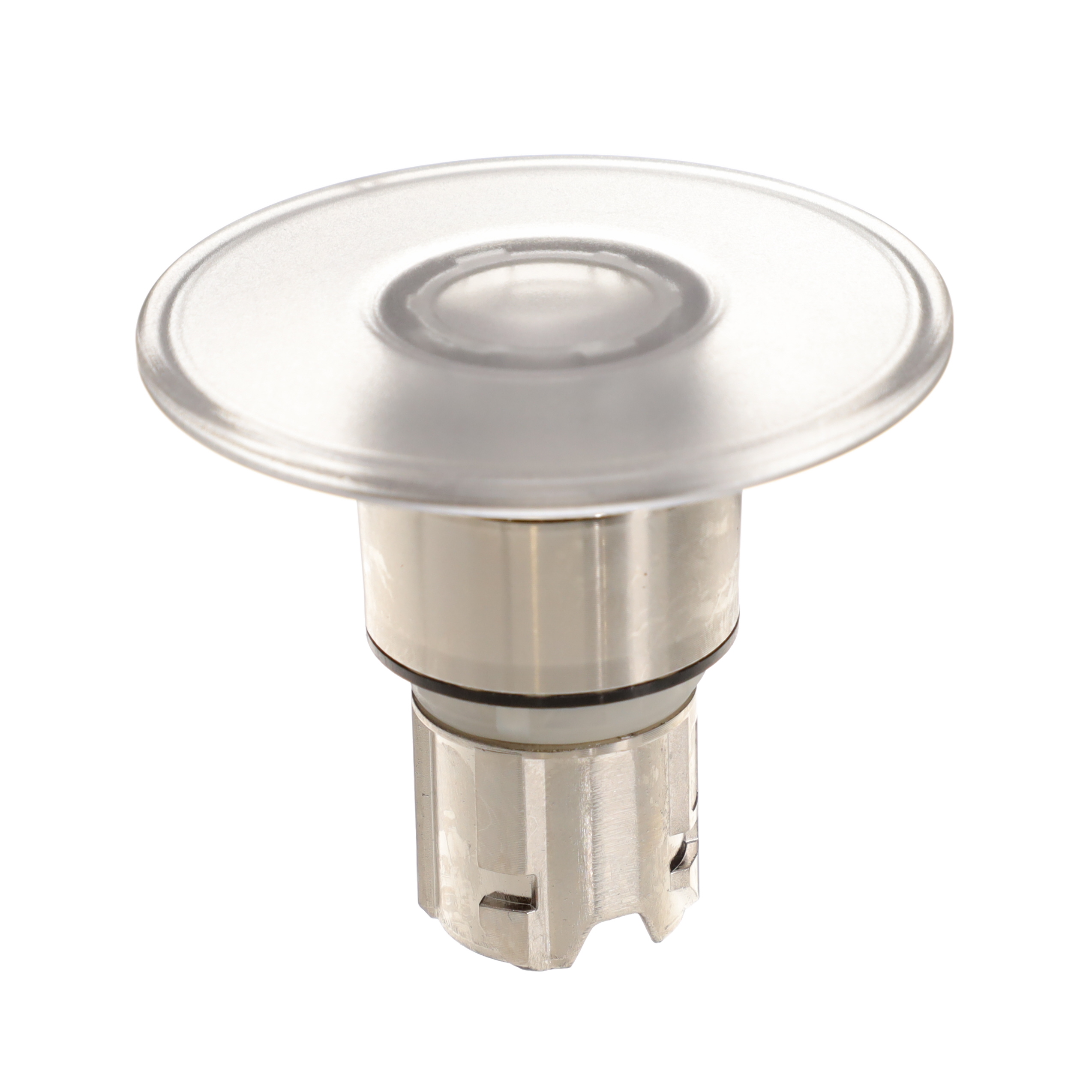

45-2630.2AK0.000
ActiveEAO
CONFIG SW BODY MUSH PB ILLUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
45-2630.2AK0.000
ActiveEAO
CONFIG SW BODY MUSH PB ILLUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 45-2630.2AK0.000 | 45-2630 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 45, EAO | 45, EAO |
| Actuator Type | Pushbutton, Mushroom | Pushbutton, Mushroom |
| Illumination | Illuminated | Illuminated - Yellow, Illuminated - Green, Illuminated, Illuminated - Amber, Illuminated - Blue |
| Panel Cutout Dimensions | 22.3 mm | 22.3 mm |
| Requires | Illumination Source, Contact Block(s) | Illumination Source, Contact Block(s) |
| Type | Maintained | Maintained |
45-2630 Series
CONFIG SWITCH BODY MUSH PB ILLUM
| Part | Requires | (Select First, Then Apply Filters) Compatible Series | Panel Cutout Dimensions | Actuator Type | Type | Illumination |
|---|---|---|---|---|---|---|
Contact Block(s), Illumination Source | 45, EAO | 22.3 mm | Pushbutton, Mushroom | Maintained | Illuminated - Yellow | |
Contact Block(s), Illumination Source | 45, EAO | 22.3 mm | Pushbutton, Mushroom | Maintained | Illuminated - Green | |
Contact Block(s), Illumination Source | 45, EAO | 22.3 mm | Pushbutton, Mushroom | Maintained | Illuminated | |
Contact Block(s), Illumination Source | 45, EAO | 22.3 mm | Pushbutton, Mushroom | Maintained | ||
Contact Block(s), Illumination Source | 45, EAO | 22.3 mm | Pushbutton, Mushroom | Maintained | Illuminated - Yellow | |
Contact Block(s), Illumination Source | 45, EAO | 22.3 mm | Pushbutton, Mushroom | Maintained | Illuminated - Amber | |
Contact Block(s), Illumination Source | 45, EAO | 22.3 mm | Pushbutton, Mushroom | Maintained | Illuminated - Yellow | |
Contact Block(s), Illumination Source | 45, EAO | 22.3 mm | Pushbutton, Mushroom | Maintained | Illuminated - Blue | |
Contact Block(s), Illumination Source | 45, EAO | 22.3 mm | Pushbutton, Mushroom | Maintained | Illuminated | |
Contact Block(s), Illumination Source | 45, EAO | 22.3 mm | Pushbutton, Mushroom | Maintained | Illuminated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 70.28 | |
| 5 | $ 65.14 | |||
| 10 | $ 59.99 | |||
| 25 | $ 55.71 | |||
| 50 | $ 51.42 | |||
| 100 | $ 48.85 | |||
Description
General part information
45-2630 Series
Configurable Switch Body Pushbutton, Mushroom Illuminated
