Description
General part information
09046326951

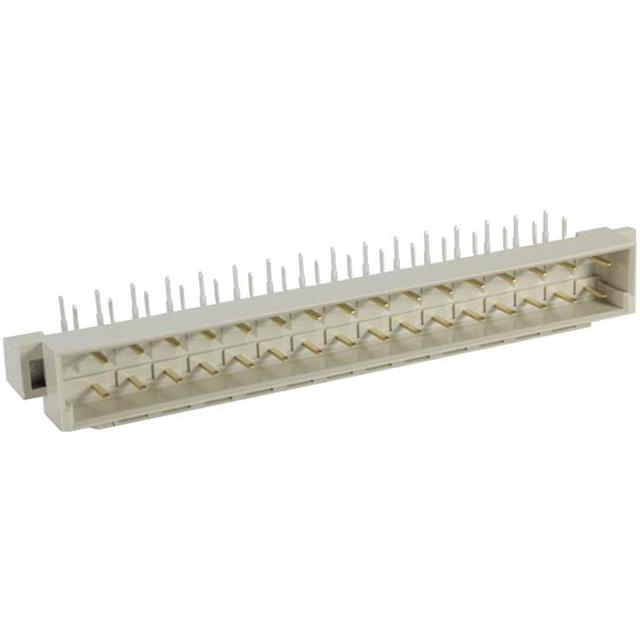

32 (Power) Position Din Connector Header, Male Pins Gold Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 09046326951 |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Current Rating | 6 A |
| Level, Class | 2 |
| Material - Insulation | Glass Filled, Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 32 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 5.08 mm |
| Position Types | Power |
| Style | D |
| Termination | Solder |
