6376
ObsoletePomona Electronics
PROBE SURFACE TEMP 4IN PROBE
6376
ObsoletePomona Electronics
PROBE SURFACE TEMP 4IN PROBE
Description
General part information
6376

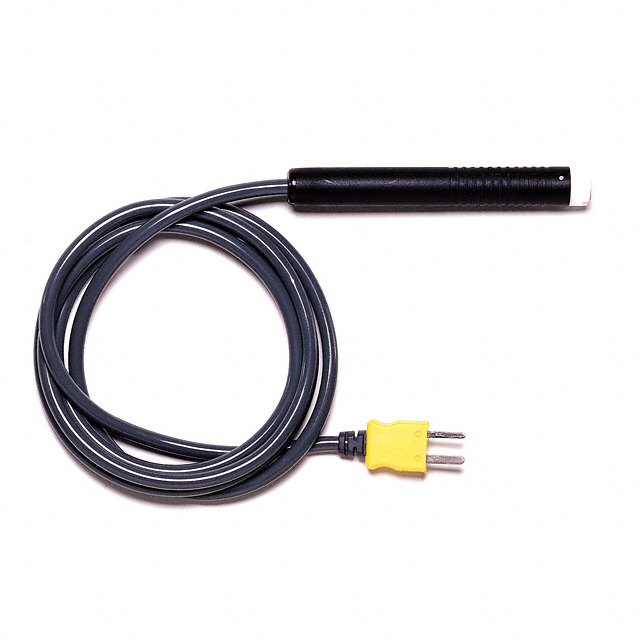

48.000" (1219.20mm) K-Type Thermocouple Contact, Spring 32 ~ 500°F (0 ~ 260°C)
Technical Specifications
Parameters and characteristics for this part
| Specification | 6376 |
|---|---|
| Cable Insulation | Poly-Vinyl Chloride (PVC) |
| Cable Length | 48 in |
| Maximum Probe Temperature | 500 °F |
| Minimum Probe Temperature | 32 °F |
| Plug Color | Yellow |
| Plug Type | Sub-Mini (Thermocouple Plug) |
| Probe Length | 3.95 in |
| Probe Material | Polytetrafluoroethylene, PTFE |
| Tip Type | Contact, Spring |
| Type | K-Type Thermocouple |
| Usage | Surface |
