Description
General part information
173107 Series

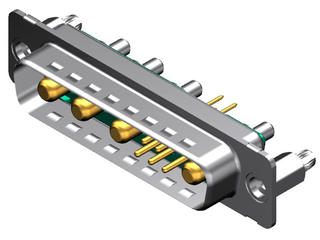

D-Sub Mixed Contact Connectors FCT ML DSUB RA PC PLG 24W7 W/CLINCH
Technical Specifications
Parameters and characteristics for this part
| Specification | 1731071853 |
|---|---|
| Color | Green |
| Connector Layout | DB, B |
| Connector Style | Combo, D-Sub |
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Contact Form | Machined |
| Contact Material | Copper Alloy |
| Contact Type | Coax or Power, Signal |
| Current Rating | 5 A |
| Dielectric Material | Glass Filled, Polyester |
| Features | Grounding Indents |
| Finish | Tin Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions (Special) | 4 |
| Number of Positions (Standard) | 5 |
| Number of Positions (Total) | 9 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Part Code | 9W4 |
| Position Types | Coax, Power |
| Primary Material | Metal |
| Shell Material | Steel |
| Shell Size | 3 |
| Termination | Solder |
