BSW841
ActiveBeRex Corp
IC RF SWITCH SPDT 4GHZ 8MSOP
BSW841
ActiveBeRex Corp

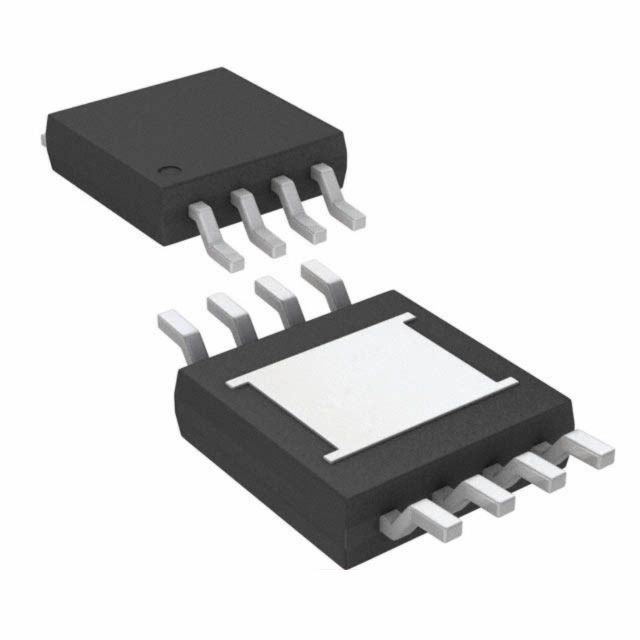

IC RF SWITCH SPDT 4GHZ 8MSOP
Description
General part information
BSW841
RF Switch IC 5G NR, Cellular, LTE, PCS, WCDMA, WIMAX SPDT 50Ohm 8-MSOP
Technical Specifications
Parameters and characteristics for this part
| Specification | BSW841 |
|---|---|
| Circuit | SPDT |
| Frequency Range (Low) | DC |
| Frequency Range (Max) | 4 GHz |
| IIP3 | 48 dBm |
| Impedance | 50 Ohm |
| Insertion Loss | 0.7 dB |
| Isolation | 45 dB |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| P1dB | 23 dBm |
| Package Features | Exposed Pad |
| Package Length | 0.118 in |
| Package Name | 8-MSOP, 8-TSSOP |
| Package Width | 3 mm |
| RF Type | WiMAX, 5G NR, Cellular, PCS, WCDMA, LTE |
| Test Frequency | 2 GHz |
| Voltage - Supply | 5 VDC |
