TS2C4F20C

Active

Switchcraft Inc.

CONN PLUG FMALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TS2C4F20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Backshell Material, Plating	Copper Alloy, Nickel
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

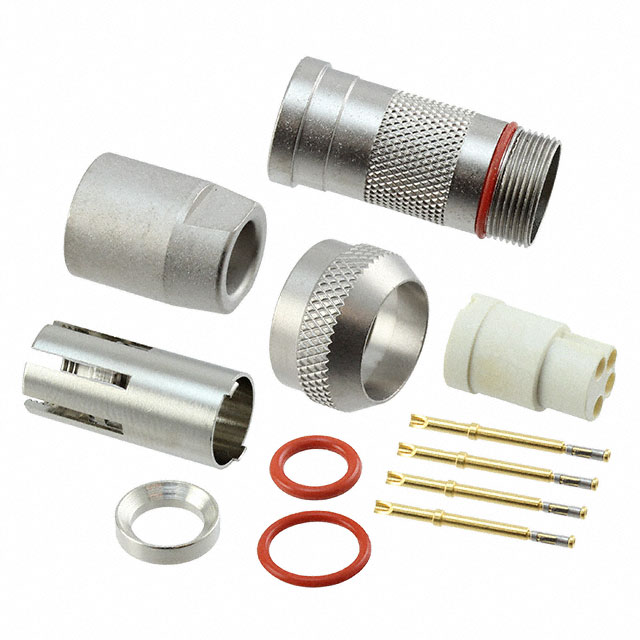

CONN PLUG FMALE 4POS GOLD CRIMP

Part	Applications	Number of Positions	Shell Material	Orientation	Primary Material	Shell Finish	Voltage Rating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Backshell Material, Plating	Contact Finish - Mating	Termination	Shielding	Insert Material	Mounting Type	Features	Ingress Protection	Connector Type
Switchcraft Inc. TS2C4F20C	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	4	Copper Alloy	Keyed	Metal	Electroless Nickel	125 VAC	Copper Alloy	135 °C	-40 °C	Silver	5.49 mm	4.57 mm	0.18 in	0.216 in	Copper Alloy, Nickel	Gold	Crimp, Solder Cup	Shielded	Liquid Crystal Polymer (LCP)	Free Hanging (In-Line)	Backshell, Coupling Nut	IP66, IP67, IP68	Female Sockets, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 27.53

General part information

4 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup
