Description
General part information

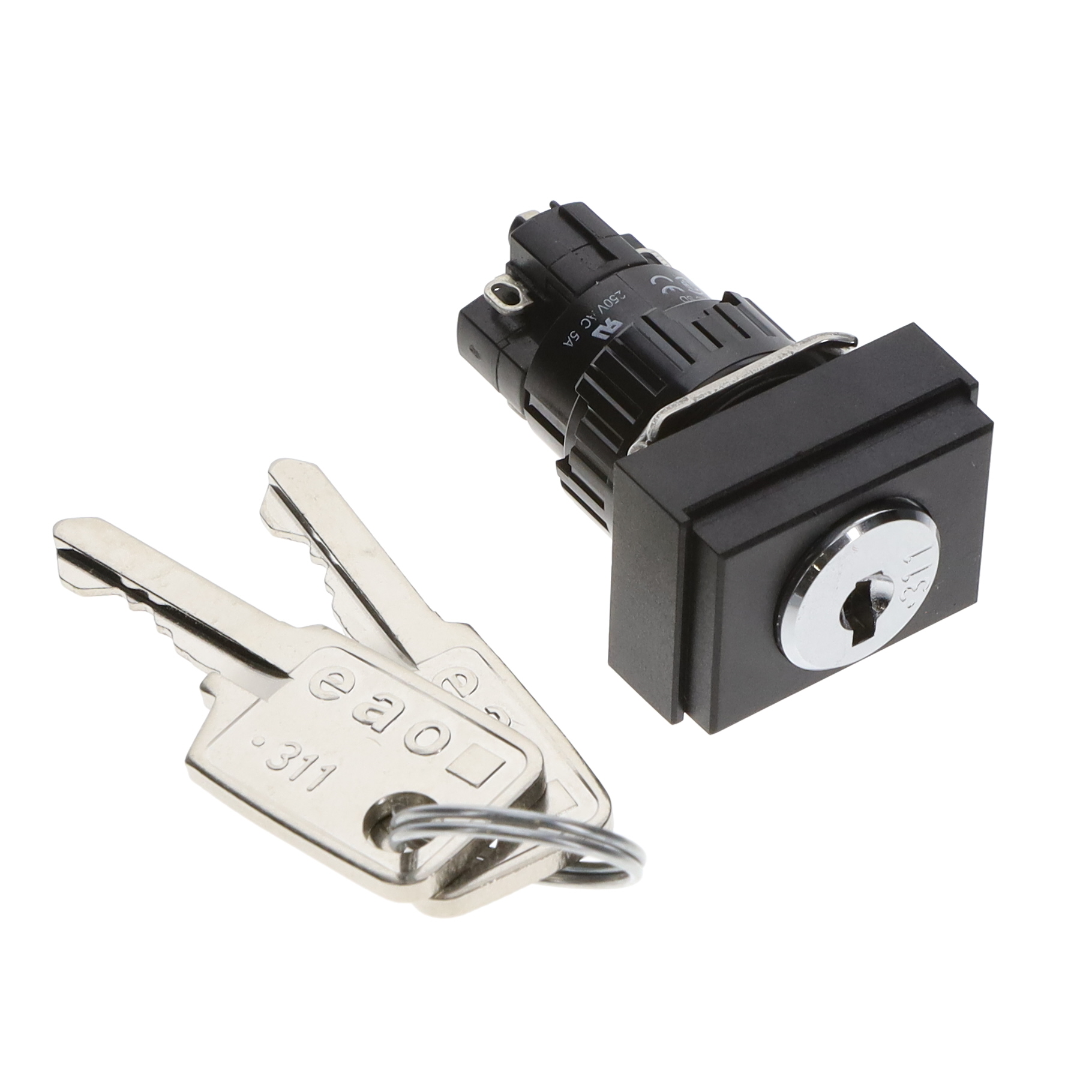

51-495.025D2
Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 51-495.025D2 |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 42 ° |
| Circuit | DPST-NO/NC |
| Contact Finish | Gold |
| Contact Material | Silver |
| Current Rating | 5 A |
| Depth Behind Flange | 36 mm |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Panel Cutout Diameter | 16.2 mm |
| Panel Cutout Shape | Circular |
| Removable Positions | Right |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 250 V |
