9834 060500

Active

Belden Inc.

MULTI-PAIR 18COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 18COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9834 060500

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	10.64 mm
Jacket (Insulation) Diameter [diameter]	0.419 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	18
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Cable Type	Number of Conductors	Wire Gauge	Jacket (Insulation) Material	Shield Coverage	Conductor Insulation	Jacket Color	Length [x]	Length [x]	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features
Belden Inc. 9834 060500	Braid Foil	32 AWG	7	Computer	Multi-Pair	18	24 AWG	Poly-Vinyl Chloride (PVC)	65 % 100 %	Polyethylene (PE)	Chrome	500 '	152.4 m	Aluminum Copper Tinned	0.889 mm	0.035 in	-30 ░C	80 C	Copper Tinned	UL Style 2919	10.64 mm	0.419 in	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 11.54

General part information

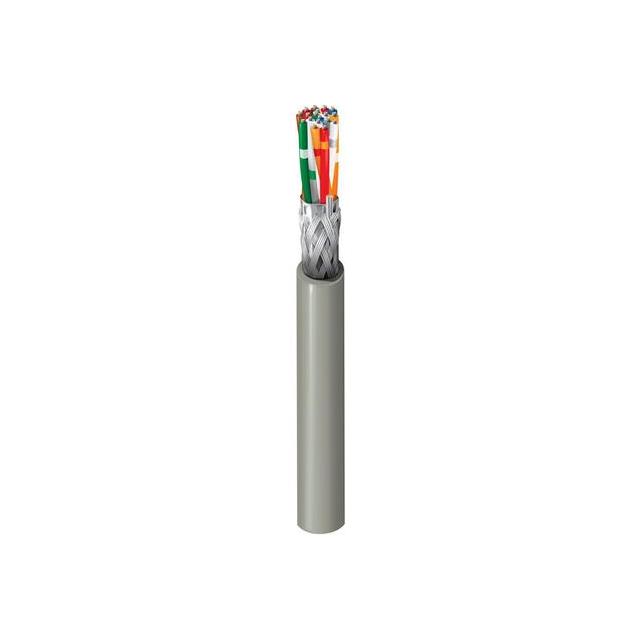

18 (9 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 500.0' (152.4m)
