3213410
ActivePhoenix Contact
TERM BLOCK RCPT 4POS STR 3.5MM
3213410
ActivePhoenix Contact
TERM BLOCK RCPT 4POS STR 3.5MM
Description
General part information
3213410

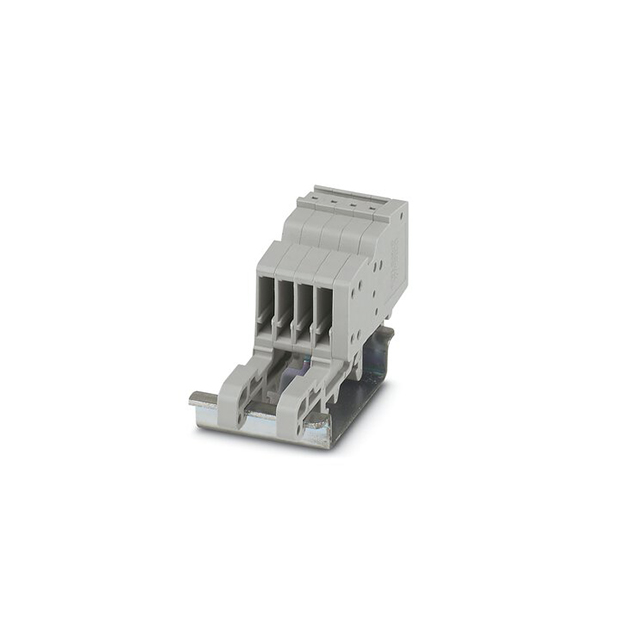

4 Position Terminal Block Receptacle, Female Sockets 0.138" (3.50mm) 180° DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | 3213410 |
|---|---|
| Color | Gray |
| Current - IEC | 17.5 A |
| Features | Rail Mount Foot |
| Mounting Type | DIN Rail |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Pitch | 0.138 in |
| Plug Wire Entry Angle | 180 ° |
| Positions Per Level | 4 |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Type | Female Sockets, Receptacle |
| Voltage - IEC | 500 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 14 AWG |
| Wire Gauge or Range - mm² (Maximum) | 1.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
