4C24-NP125-I10-H-Z11-1

Active

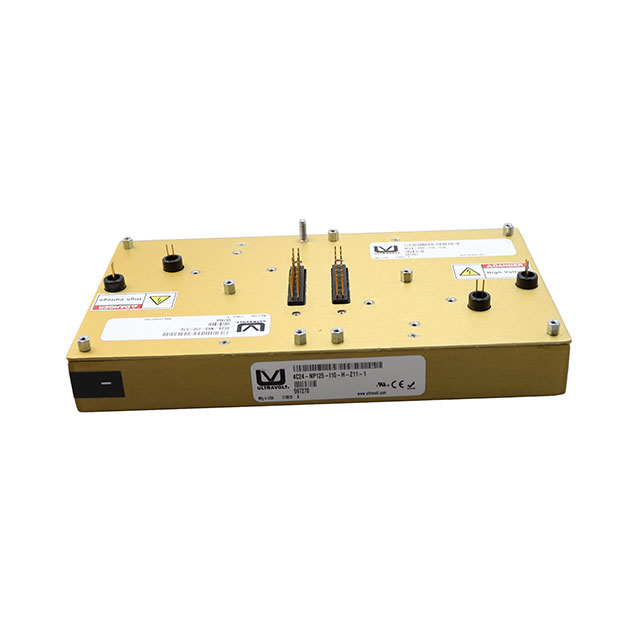

NON-ISOLATED DC/DC CONVERTERS DUAL POLARITY C SERIES, DUAL OUTPUT (UNIPOLAR), +24V INPUT, +4000V/-4000V DC HVOUT, 125W TOTAL, WITH ENHANCED INTERFACE INCLUDING 0 TO 10 VDC CONTROLS AND MONITORS, HEATSINK, PCB MOUNTING STANDOFFS, VERSION -1

Find alt

Alpha

4C24-NP125-I10-H-Z11-1

Active

ULTRAVOLT / Advanced Energy

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

Dual Polarity C Series

High Voltage - Non-Isolated Module DC DC Converter 1 Output ±4000V 31mA 23V - 30V Input

Technical Specifications

Parameters and characteristics for this part

Specification	4C24-NP125-I10-H-Z11-1

Applications	ITE (Commercial)
Approval Agency	cURus, CE
Control Features	Active Floating, Enable
Current - Output (Max)	31 mA
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-40 °C
Package / Case	Module
Power (Watts)	125 W
Size / Dimension Height	1.06 in
Size / Dimension Length	4.5 in
Size / Dimension Width	4 in
Type	High Voltage - Non-Isolated Module
Voltage - Input (Max)	30 V p-p
Voltage - Input (Min)	23 V
Voltage - Output 1	4000 V

Dual Polarity C Series

...

Part	Mounting Type	Voltage - Output 1	Type	Control Features	Voltage - Input (Min)	Applications	Number of Outputs	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Output 2	Current - Output (Max)	Package / Case	Voltage - Input (Max)	Approval Agency	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Power (Watts)	Features	Voltage - Output 2 (Min)	Voltage - Output 2 (Max)	Standard Number	Voltage - Output 1 (Min)	Voltage - Output 1 (Max)
ULTRAVOLT / Advanced Energy 1/8C24-NP250-1	Through Hole	125 V	High Voltage - Non-Isolated Module	Active Floating Enable	23 V	ITE (Commercial)	2	-40 °C	65 °C	-125 V	1 A	Module	30 V p-p	CE cURus	8 in	1.08 in	114.3 mm	60 W
ULTRAVOLT / Advanced Energy 6C24-NP250-Z11-1
ULTRAVOLT / Advanced Energy 4C24-NP125-I10-1	Through Hole		High Voltage - Non-Isolated Module	Active High Active Low Enable	23 V	ITE (Commercial)	2	-40 °C	65 °C		15 mA	Module	30 V p-p	CE cUR cURus UR	8 in	1.08 in	114.3 mm	120 W	Adjustable Output Remote On/Off	-4000 V	0 V	60950-1	0 V	4000 V
ULTRAVOLT / Advanced Energy 2C24-NP250-H-Z11-1
ULTRAVOLT / Advanced Energy 1/8C24-NP125-1	Through Hole	125 V	High Voltage - Non-Isolated Module	Active Floating Enable	23 V	ITE (Commercial)	2	-40 °C	65 °C	-125 V	480 mA	Module	30 V p-p	CE cURus	8 in	1.08 in	114.3 mm	60 W
ULTRAVOLT / Advanced Energy 6C24-NP125-I10-Z11-1
ULTRAVOLT / Advanced Energy 1/4C24-NP125-1	Through Hole	250 V	High Voltage - Non-Isolated Module	Active Floating Enable	23 V	ITE (Commercial)	2	-40 °C	65 °C	-250 V	240 mA	Module	30 V p-p	CE cURus	8 in	1.08 in	114.3 mm	60 W
ULTRAVOLT / Advanced Energy 1/8C24-NP250-I10-Z11-1	Through Hole	125 V	High Voltage - Non-Isolated Module	Active Floating Enable	23 V	ITE (Commercial)	2	-40 °C	65 °C	-125 V	1 A	Module	30 V p-p	CE cURus	8 in	1.08 in	114.3 mm	15 W
ULTRAVOLT / Advanced Energy 1C24-NP250-Z11-1
ULTRAVOLT / Advanced Energy 1/4C24-NP125-H-Z11-1	Through Hole	250 V	High Voltage - Non-Isolated Module	Active Floating Enable	23 V	ITE (Commercial)	2	-40 °C	65 °C	-250 V	240 mA	Module	30 V p-p	CE cURus	8 in	1.48 in	114.3 mm	15 W	Heat Sink
