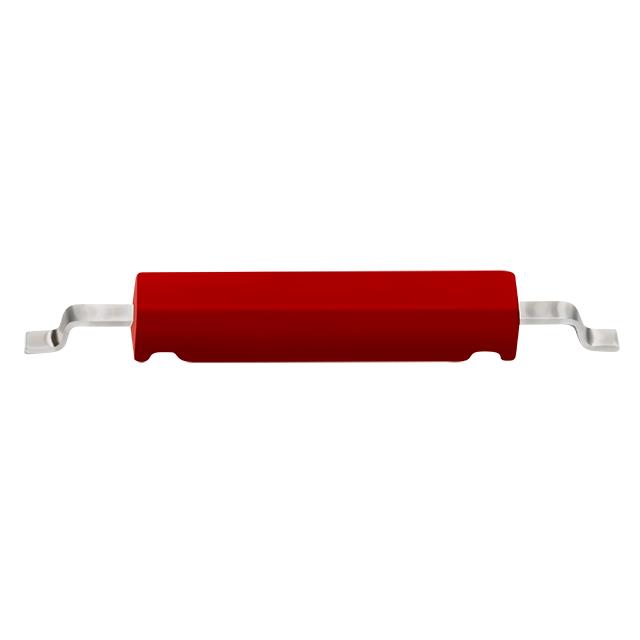

CT10-1040-G4

Obsolete

Coto Technology

SWITCH REED SPST-NO 500MA 140V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Reed Switches Technical, Appl Info

CT10-1040-G4

Obsolete

Coto Technology

SWITCH REED SPST-NO 500MA 140V

Deep-Dive with AI

DocumentsDatasheet Reed Switches Technical, Appl Info

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CT10-1040-G4	CT10 Series

Circuit	SPST-NO	SPST-NO
Current - Carry	500 mA	500 mA
Current - Switching	500 mA	500 mA
Height Above Board	0.1 in	0.1 - 0.115 in
Height Above Board	2.54 mm	2.54 - 2.92 mm
Length - Overall	0.77 in	0.77 in
Length - Overall	19.56 mm	19.56 mm
Length - Overall	-	15.6 - 16.26 mm
Length - Overall	-	0.614 - 0.64 in
Mounting Type	Surface Mount	Surface Mount
Operate Range	-	30AT, 40AT
Operate Range	-	10 - 25
Operate Range	-	20 - 40 AT
Operate Range [Max] [custom]	40 AT	30 - 40 AT
Operate Range [Min] [custom]	10 AT	10 - 15 AT
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power - Rated	10 W	10 W
Release Range [Max]	35 AT	35 AT
Release Range [Min]	3 AT	3 AT
Size - Body [x]	0.505 in	0.458 - 0.505 in
Size - Body [x]	12.83 mm	11.63 - 12.83 mm
Size - Body [y]	2.29 mm	2.29 - 2.41 mm
Size - Body [y]	0.09 in	0.09 - 0.095 in
Size - Body [z]	2.41 mm	2.41 - 2.92 mm
Size - Body [z]	0.095 in	0.095 - 0.115 in
Termination Style	Gull Wing	Axial, Flat, Gull Wing
Type	Molded Body Reed	Molded Body Reed
Voltage - Switching AC [custom]	140 V	140 V
Voltage - Switching DC	200 V	200 V

CT10 Series

SWITCH REED SPST-NO 500MA 140V

Part	Termination Style	Voltage - Switching DC	Size - Body [z]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Size - Body [z]	Size - Body [x]	Power - Rated	Current - Switching	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Length - Overall [x]	Length - Overall [x]	Voltage - Switching AC [custom]	Circuit	Release Range [Min]	Release Range [Max]	Current - Carry	Operate Range [Max] [custom]	Operate Range [Min] [custom]	Operate Range [Max]	Operate Range [Min]	Length - Overall	Length - Overall	Height Above Board	Height Above Board	Operate Range [Max]
Coto Technology CT10-1040-A2	Axial, Flat	200 V	0.095 in	0.095 in	2.41 mm	0.505 in	2.41 mm	12.83 mm	10 W	500 mA	125 °C	-40 °C	Molded Body Reed	Surface Mount	15.6 mm	0.614 in	140 V	SPST-NO	3 AT	35 AT	500 mA	40 AT	10 AT
Coto Technology CT10-1030-G4	Gull Wing	200 V	0.095 in	0.09 in	2.29 mm	0.505 in	2.41 mm	12.83 mm	10 W	500 mA	125 °C	-40 °C	Molded Body Reed	Surface Mount			140 V	SPST-NO			500 mA			30AT	10	0.77 in	19.56 mm	0.1 in	2.54 mm
Coto Technology CT10-1530-G2	Gull Wing	200 V	0.115 in	0.095 in	2.41 mm	0.458 in	2.92 mm	11.63 mm	10 W	500 mA	125 °C	-40 °C	Molded Body Reed	Surface Mount			140 V	SPST-NO			500 mA	30 AT	15 AT			0.77 in	19.56 mm	0.115 in	2.92 mm
Coto Technology CT10-1540-G2	Gull Wing	200 V	0.115 in	0.095 in	2.41 mm	0.458 in	2.92 mm	11.63 mm	10 W	500 mA	125 °C	-40 °C	Molded Body Reed	Surface Mount			140 V	SPST-NO			500 mA				15	0.77 in	19.56 mm	0.115 in	2.92 mm	40 AT
Coto Technology CT10-1540-G4	Gull Wing	200 V	0.095 in	0.09 in	2.29 mm	0.505 in	2.41 mm	12.83 mm	10 W	500 mA	125 °C	-40 °C	Molded Body Reed	Surface Mount			140 V	SPST-NO			500 mA				15	0.77 in	19.56 mm	0.1 in	2.54 mm	40 AT
Coto Technology CT10-1025-G1	Gull Wing	200 V	0.115 in	0.095 in	2.41 mm	0.458 in	2.92 mm	11.63 mm	10 W	500 mA	125 °C	-40 °C	Molded Body Reed	Surface Mount	16.26 mm	0.64 in	140 V	SPST-NO			500 mA				10			0.115 in	2.92 mm	25 AT
Coto Technology CT10-2040-G2	Gull Wing	200 V	0.115 in	0.095 in	2.41 mm	0.458 in	2.92 mm	11.63 mm	10 W	500 mA	125 °C	-40 °C	Molded Body Reed	Surface Mount			140 V	SPST-NO			500 mA				20 AT	0.77 in	19.56 mm	0.115 in	2.92 mm	40 AT
Coto Technology CT10-1530-G4	Gull Wing	200 V	0.095 in	0.09 in	2.29 mm	0.505 in	2.41 mm	12.83 mm	10 W	500 mA	125 °C	-40 °C	Molded Body Reed	Surface Mount			140 V	SPST-NO			500 mA	30 AT	15 AT			0.77 in	19.56 mm	0.1 in	2.54 mm
Coto Technology CT10-1030-G1	Gull Wing	200 V	0.115 in	0.095 in	2.41 mm	0.458 in	2.92 mm	11.63 mm	10 W	500 mA	125 °C	-40 °C	Molded Body Reed	Surface Mount	16.26 mm	0.64 in	140 V	SPST-NO			500 mA			30AT	10			0.115 in	2.92 mm
Coto Technology CT10-1020-G1	Gull Wing	200 V	0.115 in	0.095 in	2.41 mm	0.458 in	2.92 mm	11.63 mm	10 W	500 mA	125 °C	-40 °C	Molded Body Reed	Surface Mount	16.26 mm	0.64 in	140 V	SPST-NO			500 mA				10			0.115 in	2.92 mm	20 AT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CT10 Series

Molded Body Reed Switch SPST-NO 10 ~ 40AT Operate Range 10W 500mA (AC/DC) 140 V Surface Mount
