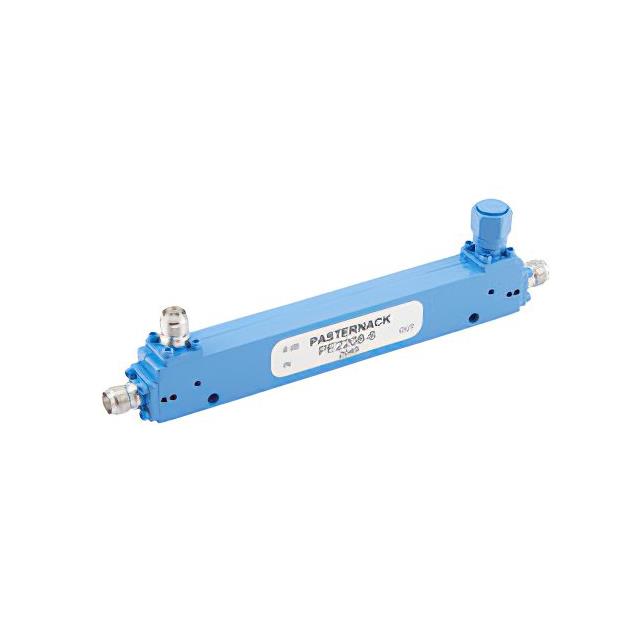

PE2208-6
ActivePasternack
DIRECTIONAL 6 DB SMA COUPLER FRO
PE2208-6
ActivePasternack
DIRECTIONAL 6 DB SMA COUPLER FRO
Description
General part information
PE2208-6
RF Directional Coupler General Purpose 500MHz ~ 2GHz 6 ± 1dB 50W Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | PE2208-6 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 6 dB |
| Coupling Factor Tolerance | 1 dB |
| Frequency (Max) | 2 GHz |
| Frequency (Min) | 500 MHz |
| Insertion Loss | 0.3 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| Power - Max | 50 VA |
