Specification	BKS-119-01-F-V

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Per Contact)	2.8 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.084 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Height Options	5mm, 7mm, 4.5mm, 4.14mm, 6mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	19
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.039 in
Row Spacing - Mating	0.1 in
Style	Board
Termination	Solder

BKS Series

Headers & Wire Housings 1.00 mm Polarized Micro Socket Strip

Part	Contact Finish - Mating	Number of Rows	Contact Type	Fastening Type	Current Rating (Per Contact)	Termination	Insulation Height	Mounting Type	Material Flammability Rating	Pitch - Mating	Number of Positions Loaded	Connector Type	Row Spacing - Mating	Contact Finish - Post	Mated Stacking Height Options	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness - Mating	Insulation Color	Number of Positions	Style	Contact Material	Insulation Material	Contact Shape
Samtec Inc. BKS-151-01-L-V-A-P-TR	Gold	2	Female Socket	Push-Pull	2.8 A	Solder	0.084 in	Surface Mount	UL94 V-0	0.039 in	All	Socket	0.1 in	Tin	4.14mm 4.5mm 5mm 6mm 7mm	125 °C	-55 °C	10 µin	Black	51	Board
Samtec Inc. BKS-121-01-F-V-A	Gold	2	Female Socket	Push-Pull	2.8 A	Solder	0.084 in	Surface Mount	UL94 V-0	0.039 in	All	Socket	0.1 in	Tin	4.14mm 4.5mm 5mm 6mm 7mm	125 °C	-55 °C	3 µin	Black	21	Board	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. BKS-117-01-L-V	Gold	2	Female Socket	Push-Pull	2.8 A	Solder	0.084 in	Surface Mount	UL94 V-0	0.039 in	All	Socket	0.1 in	Tin	4.14mm 4.5mm 5mm 6mm 7mm	125 °C	-55 °C	10 µin	Black	17	Board	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square

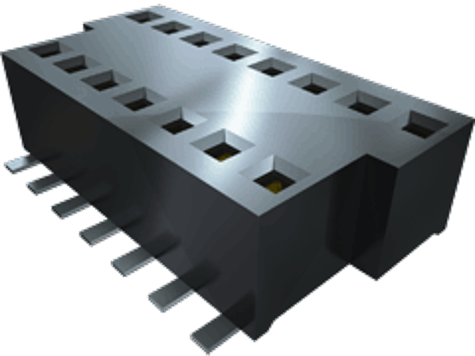

Samtec Inc. BKS-131-01-L-V-A-P-TR	Gold	2	Female Socket	Push-Pull	2.8 A	Solder	0.084 in	Surface Mount	UL94 V-0	0.039 in	All	Socket	0.1 in	Tin	4.14mm 4.5mm 5mm 6mm 7mm	125 °C	-55 °C	10 µin	Black	31	Board
Samtec Inc. BKS-163-01-L-V	Gold	2	Female Socket	Push-Pull	2.8 A	Solder	0.084 in	Surface Mount	UL94 V-0	0.039 in	All	Socket	0.1 in	Tin	4.14mm 4.5mm 5mm 6mm 7mm	125 °C	-55 °C	10 µin	Black	63	Board
Samtec Inc. BKS-109-01-L-V	Gold	2	Female Socket	Push-Pull	2.8 A	Solder	0.084 in	Surface Mount	UL94 V-0	0.039 in	All	Socket	0.1 in	Tin	4.14mm 4.5mm 5mm 6mm 7mm	125 °C	-55 °C	10 µin	Black	9	Board	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. BKS-133-01-F-V-A	Gold	2	Female Socket	Push-Pull	2.8 A	Solder	0.084 in	Surface Mount	UL94 V-0	0.039 in	All	Socket	0.1 in	Tin	4.14mm 4.5mm 5mm 6mm 7mm	125 °C	-55 °C	3 µin	Black	33	Board	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. BKS-141-01-L-V	Gold	2	Female Socket	Push-Pull	2.8 A	Solder	0.084 in	Surface Mount	UL94 V-0	0.039 in	All	Socket	0.1 in	Tin	4.14mm 4.5mm 5mm 6mm 7mm	125 °C	-55 °C	10 µin	Black	41	Board	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. BKS-159-01-L-V-A-P-TR	Gold	2	Female Socket	Push-Pull	2.8 A	Solder	0.084 in	Surface Mount	UL94 V-0	0.039 in	All	Socket	0.1 in	Tin	4.14mm 4.5mm 5mm 6mm 7mm	125 °C	-55 °C	10 µin	Black	59	Board
Samtec Inc. BKS-131-01-F-V-A-P	Gold	2	Female Socket	Push-Pull	2.8 A	Solder	0.084 in	Surface Mount	UL94 V-0	0.039 in	All	Socket	0.1 in	Tin	4.14mm 4.5mm 5mm 6mm 7mm	125 °C	-55 °C	3 µin	Black	31	Board
