FMCA2886-60
ActiveFairview Microwave
CBL ASSY TNCJACK-TNCJACK 60
FMCA2886-60
ActiveFairview Microwave
CBL ASSY TNCJACK-TNCJACK 60
Description
General part information
FMCA2886-60

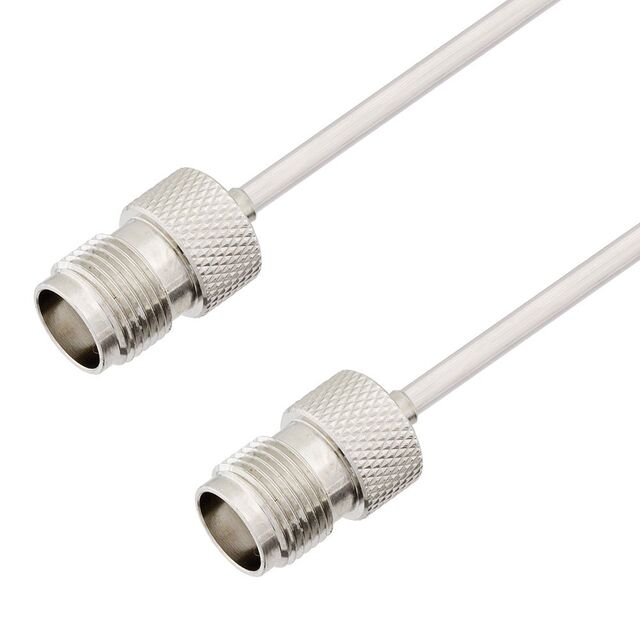

Cable Assembly Coaxial TNC to TNC Hand Formable .141 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2886-60 |
|---|---|
| 1st Connector | TNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.141 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Overall Impedance | 50 Ohms |
| Style | TNC |
