102202-2

Active

TE Connectivity AMP Connectors

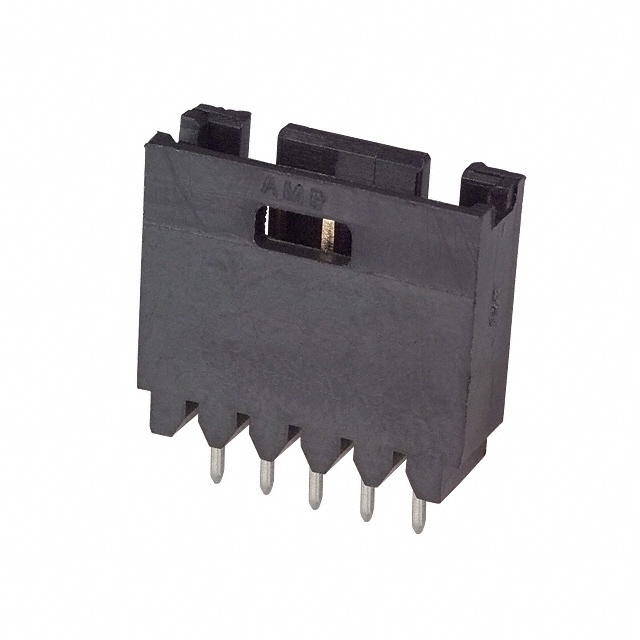

CONN HEADER VERT 5POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

102202-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 5POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	102202-2	102202 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	0.13 in	0.13 in
Contact Length - Post	3.3 mm	3.3 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.549 in	0.549 in
Insulation Height	13.94 mm	13.94 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	4 - 22
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	0.589 "	0.589 "
Overall Contact Length	14.96 mm	14.96 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

102202 Series

CONN HEADER VERT 14POS 2.54MM

Part	Overall Contact Length	Overall Contact Length	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Connector Type	Mounting Type	Shrouding	Contact Shape	Contact Finish - Mating	Style	Insulation Color	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Insulation Material	Contact Length - Mating	Contact Length - Mating [x]	Number of Rows	Contact Finish - Post	Material Flammability Rating	Termination	Current Rating (Amps)	Number of Positions	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Number of Positions
TE Connectivity AMP Connectors 1-102202-1	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin-Lead	UL94 V-0	Solder	3 A	14	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 6-102202-9	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin	UL94 V-0	Solder	3 A	22 positions	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 6-102202-7	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin	UL94 V-0	Solder	3 A	20	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 6-102202-2	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin	UL94 V-0	Solder	3 A	15	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 5-102202-5	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin	UL94 V-0	Solder	3 A	8	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 5-102202-4	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin	UL94 V-0	Solder	3 A	7	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 6-102202-1	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin	UL94 V-0	Solder	3 A	14	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 8-102202-4	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin	UL94 V-0	Solder	3 A		0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 6-102202-5	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin	UL94 V-0	Solder	3 A	18	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 102202-5	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin-Lead	UL94 V-0	Solder	3 A	8	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 102202-8	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin-Lead	UL94 V-0	Solder	3 A	11	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 6-102202-4	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin	UL94 V-0	Solder	3 A		0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 1-102202-3	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin-Lead	UL94 V-0	Solder	3 A		0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass	16
TE Connectivity AMP Connectors 1-102202-2	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin-Lead	UL94 V-0	Solder	3 A	15	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 6-102202-3	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin	UL94 V-0	Solder	3 A		0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass	16
TE Connectivity AMP Connectors 5-102202-1	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin	UL94 V-0	Solder	3 A	4	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 102202-9	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin-Lead	UL94 V-0	Solder	3 A	12	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 102202-2	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin-Lead	UL94 V-0	Solder	3 A		0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 6-102202-0	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin	UL94 V-0	Solder	3 A	13	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 5-102202-3	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin	UL94 V-0	Solder	3 A	6	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass
TE Connectivity AMP Connectors 5-102202-6	0.589 "	14.96 mm	-65 ░C	105 ░C	Male Pin	Header	Through Hole	Shrouded - 4 Wall	Square	Gold	Board to Board, Cable	Black	Push-Pull	0.1 in	2.54 mm	2.54 µm	100 µin	All	Thermoplastic	6.1 mm	0.24 in	1	Tin	UL94 V-0	Solder	3 A	9	0.549 in	13.94 mm	15 µin	0.38 µm	0.13 in	3.3 mm	Brass

Description

General part information

102202 Series

Connector Header Through Hole 5 position 0.100" (2.54mm)
