EGJ.3B.305.CLA

Active

LEMO

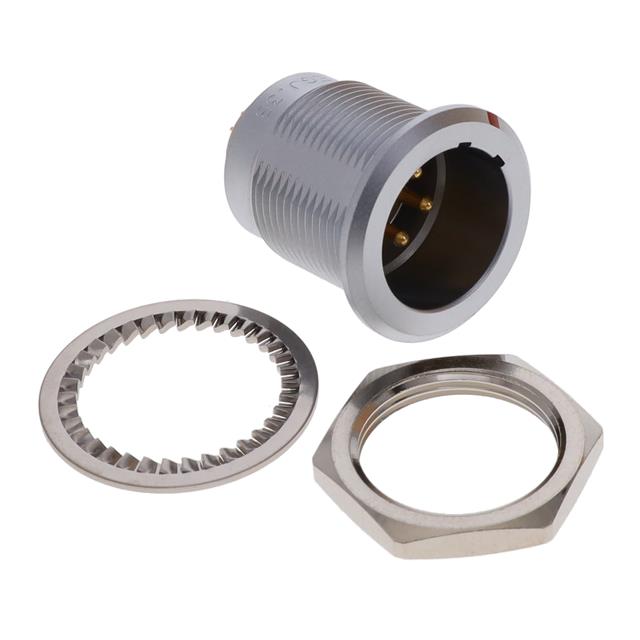

CONN RCPT MALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGJ.3B.305.CLA

Active

LEMO

CONN RCPT MALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 62.26

Description

General part information

EGJ.3B Series

5 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGJ.3B.305.CLA	EGJ.3B Series

Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	19 A	3.5 - 25 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	-	4 - 30
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	J	J
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	305	303 - 740
Shielding	Shielded	Shielded
Termination	-	Crimp

EGJ.3B Series

CONN RCPT MALE 4POS GOLD CRIMP

Part	Shell Material	Contact Finish - Mating	Shell Size - Insert	Fastening Type	Orientation	Color	Current Rating (Amps)	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Primary Material	Shell Finish	Termination	Shielding	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insert Material	Mounting Feature
LEMO EGJ.3B.304.CYC	Brass	Gold	304	Push-Pull	J	Silver	19 A	IP50	-55 °C	250 °C	Male Pins, Receptacle	Metal	Chrome	Crimp	Shielded	4	UL94 V-0	1 µm	39.4 µin	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
LEMO EGJ.3B.318.CLA	Brass	Gold	318	Push-Pull	J	Silver	7 A	IP50	-55 °C	250 °C	Male Pins, Receptacle	Metal	Chrome		Shielded	18	UL94 V-0	1 µm	39.4 µin	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
LEMO EGJ.3B.305.CYB	Brass	Gold	305	Push-Pull	J	Silver	19 A	IP50	-55 °C	250 °C	Male Pins, Receptacle	Metal	Chrome	Crimp	Shielded		UL94 V-0	1 µm	39.4 µin	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
LEMO EGJ.3B.305.CLA	Brass	Gold	305	Push-Pull	J	Silver	19 A	IP50	-55 °C	250 °C	Male Pins, Receptacle	Metal	Chrome		Shielded		UL94 V-0	1 µm	39.4 µin	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
LEMO EGJ.3B.322.CYC	Brass	Gold	322	Push-Pull	J	Silver	5.5 Amps	IP50	-55 °C	250 °C	Male Pins, Receptacle	Metal	Chrome	Crimp	Shielded	22 positions	UL94 V-0	1 µm	39.4 µin	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
LEMO EGJ.3B.303.CYC	Brass	Gold	303	Push-Pull	J	Silver	25 A	IP50	-55 °C	250 °C	Male Pins, Receptacle	Metal	Chrome	Crimp	Shielded		UL94 V-0	1 µm	39.4 µin	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
LEMO EGJ.3B.314.CLA	Brass	Gold	314	Push-Pull	J	Silver	9 A	IP50	-55 °C	250 °C	Male Pins, Receptacle	Metal	Chrome		Shielded	14	UL94 V-0	1 µm	39.4 µin	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
LEMO EGJ.3B.308.CYC	Brass	Gold	308	Push-Pull	J	Silver	13 A	IP50	-55 °C	250 °C	Male Pins, Receptacle	Metal	Chrome	Crimp	Shielded	8	UL94 V-0	1 µm	39.4 µin	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
LEMO EGJ.3B.740.CJA	Brass	Gold	740	Push-Pull	J	Silver	5.5 Amps	IP50	-55 °C	250 °C	Male Pins, Receptacle	Metal	Chrome		Shielded	12	UL94 V-0	1 µm	39.4 µin	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
LEMO EGJ.3B.330.CLA	Brass	Gold	330	Push-Pull	J	Silver	3.5 A	IP50	-55 °C	250 °C	Male Pins, Receptacle	Metal	Chrome		Shielded	30	UL94 V-0	1 µm	39.4 µin	Brass	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
