Description
General part information

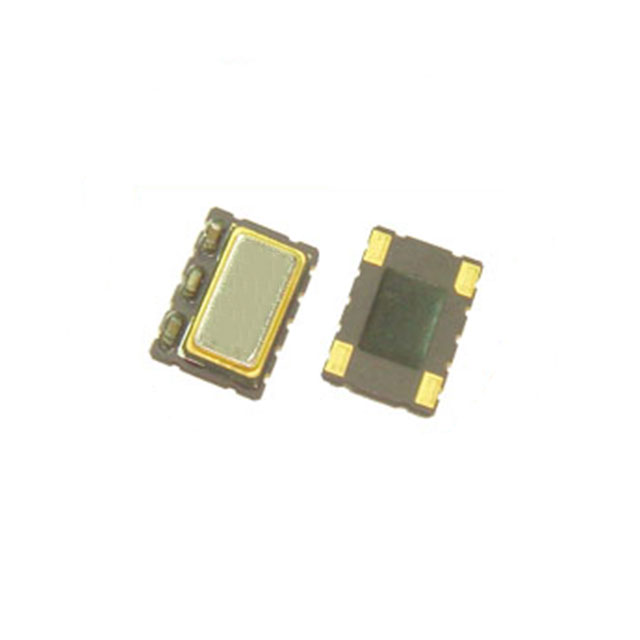

TAETBLSANF-20.000000
20 MHz TCXO Clipped Sine Wave Oscillator 3V ~ 3.3V 4-SMD, No Lead Exposed Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | TAETBLSANF-20.000000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 3.5 mA |
| Frequency | 20 MHz |
| Frequency Stability | 1 ppm |
| Height - Seated (Max) | 0.083 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead Exposed Pad |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | TCXO |
| Voltage - Supply (Maximum) | 3.3 V |
| Voltage - Supply (Minimum) | 3 V |
