RAB-32063-000
ActiveKnowles Syfer
SPEAKER 46.3OHM TOP PORT 103.5DB
RAB-32063-000
ActiveKnowles Syfer
SPEAKER 46.3OHM TOP PORT 103.5DB
Description
General part information

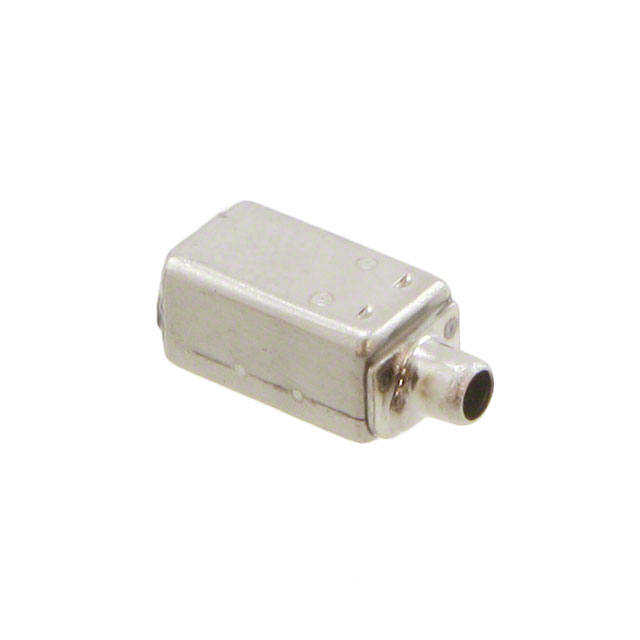

RAB-32063-000
46.3 Ohms Receiver, Balanced Armature Speaker 80 Hz ~ 10.8 kHz Top Rectangular
Technical Specifications
Parameters and characteristics for this part
| Specification | RAB-32063-000 |
|---|---|
| Efficiency - dBA | 103.5 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency Range (Max) | 10.8 kHz |
| Frequency Range (Min) | 80 Hz |
| Height - Seated (Max) | 0.203 in |
| Impedance | 46.3 Ohms |
| Port Location | Top |
| Shape | Rectangular |
| Size / Dimension Length | 0.203 in |
| Size / Dimension Width | 1.117 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | Balanced Armature, Receiver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
