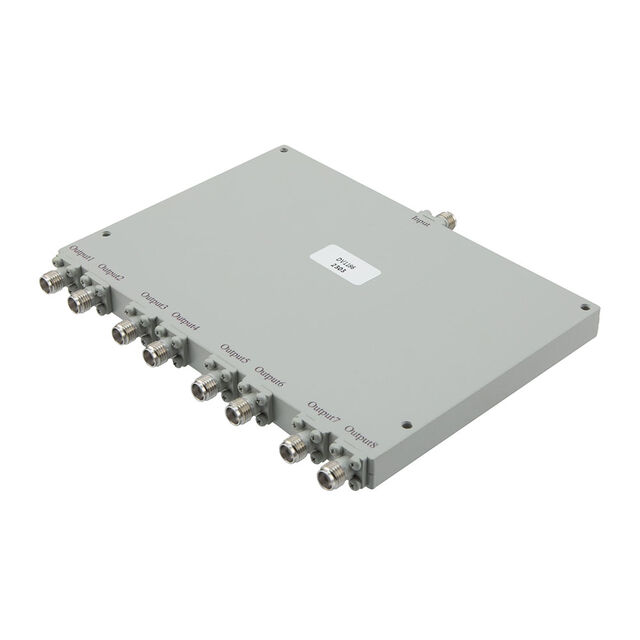

FMDV1186
ActiveFairview Microwave
POWER DIVIDER 26.5 GHZ SMA
FMDV1186
ActiveFairview Microwave
POWER DIVIDER 26.5 GHZ SMA
Description
General part information
FMDV1186
RF Power Divider 2 GHz ~ 26.5 GHz Isolation (Min) 16dB, 10° Imbalance (Max), 1.9 VSWR (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | FMDV1186 |
|---|---|
| Frequency (Max) | 26.5 GHz |
| Frequency (Min) | 2 GHz |
| Imbalance (Max) | 10 ° |
| Insertion Loss | 2.5 dB |
| Isolation (Min) | 16 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 0.413 in |
| Size / Dimension Length | 4.862 in |
| Size / Dimension Width | 3.465 in |
| VSWR (Max) | 1.9 |
