PE4288
ActivePasternack
SMB PLUG BULKHEAD MOUNT CONNECTO
PE4288
ActivePasternack
SMB PLUG BULKHEAD MOUNT CONNECTO
Description
General part information
PE4288

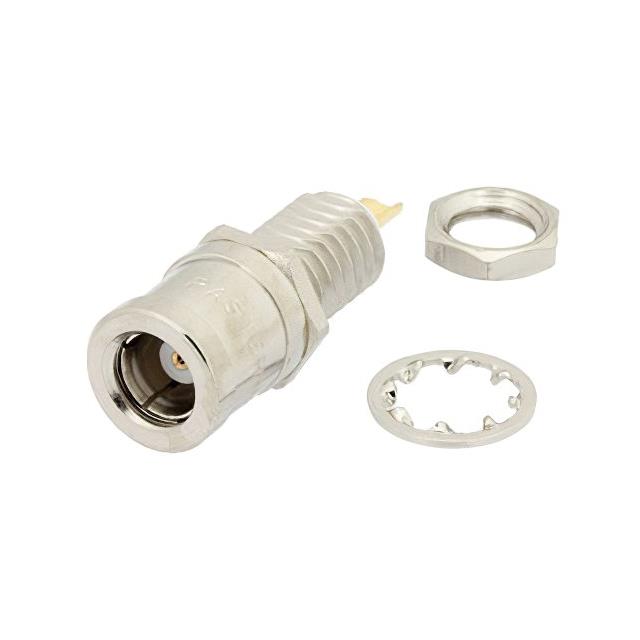

SMB Connector Plug, Male Pin 50 Ohms Panel Mount Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4288 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
