Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0035.9640.7 | 0035.9640 Series |
|---|---|---|
| Color | Yellow | Yellow, Green |
| Configuration | Single | Single |
| Current | 30 mA | 30 mA |
| Lens Size | 3 mm | 3 mm |
| Lens Size | T-1 | T-1 |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Millicandela Rating | 12 mcd | 10 - 12 mcd |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Viewing Angle | 60 ° | 60 ° |
| Voltage Rating | 2.4 V | 2.4 V |
| Wavelength - Peak | 585 nm | 565 - 585 nm |
0035.9640 Series

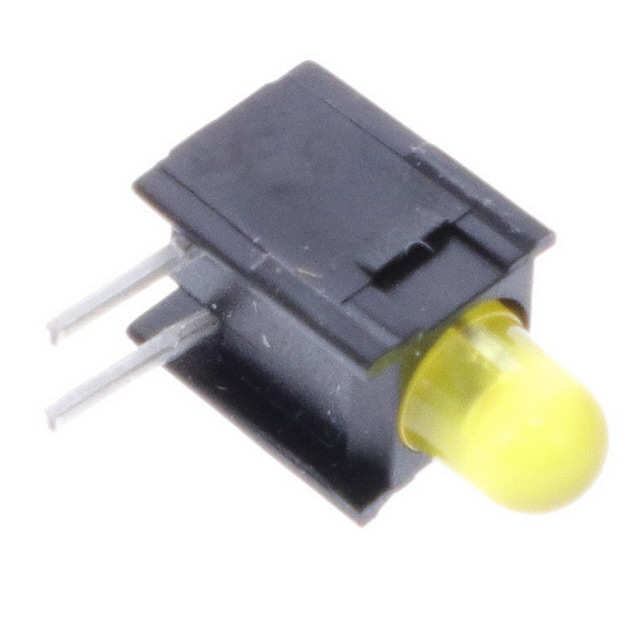

HOLDER LED 3MM SGL YELLOW RA
| Part | Configuration | Viewing Angle | Lens Style | Lens Size | Lens Size | Color | Mounting Type | Current | Voltage Rating | Millicandela Rating | Wavelength - Peak |
|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 0035.9640.7 | Single | 60 ° | Round with Domed Top | 3 mm | T-1 | Yellow | Through Hole, Right Angle | 30 mA | 2.4 V | 12 mcd | 585 nm |
SCHURTER Inc. 0035.9640.4 | Single | 60 ° | Round with Domed Top | 3 mm | T-1 | Green | Through Hole, Right Angle | 30 mA | 2.4 V | 10 mcd | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.21 | |
| 50 | $ 1.63 | |||
Description
General part information
0035.9640 Series
LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow 2.4V 30mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
