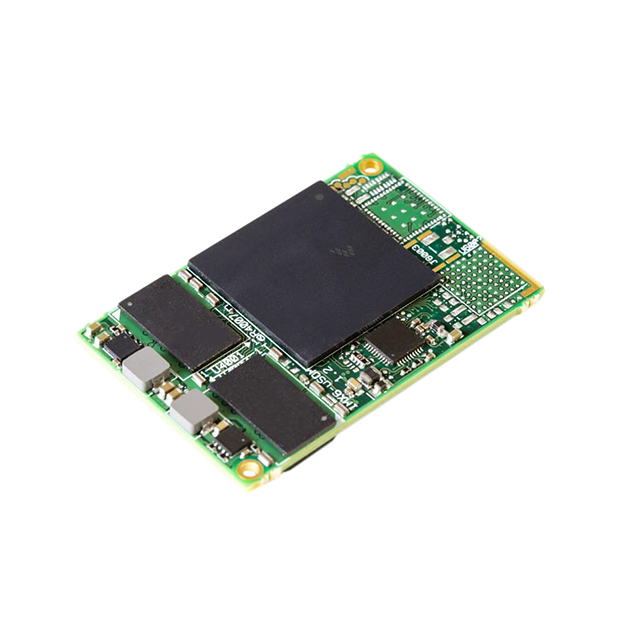

Specification	SRMX6DLW00D01GE000V15A0

Core Processor	ARM Cortex-A9, i.MX6DualLite
Digital I/O Lines	75 lines
Ethernet Ports	1
Ethernet Speed Options	10Mbps, 1000Mbps, 100Mbps
Expansion Site/Bus	PCIe
Number of Cores	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
RAM Capacity	1 GB
RAM Installed	1 GB
Size / Dimension Length	1.85 in
Size / Dimension Width	1.18 in
Speed	1.2 GHz
Storage Interface	mSD, NOR-Flash, PCIeSSD, eMMC, SD
USB	USB 2.0, USB OTG
USB 2.0 Count	1 count
USB OTG Count	1 count
Video Outputs	LVDS, DSI, HDMI

SRMX6DLW00D01GE Series

Part	Watchdog Timer	Number of Cores	Speed	Cooling Type	USB 2.0 Count	USB	Operating Temperature (Min)	Operating Temperature (Max)	RAM Installed	RAM Capacity	Size / Dimension Width	Size / Dimension Length	Storage Interface	Video Outputs	Form Factor	Core Processor	Ethernet Connector	Expansion Site/Bus	Digital I/O Lines	Ethernet Speed Options	Ethernet Ports
SolidRun LTD SRMX6DLW00D01GE016G01IH	No	2	1 GHz	Heat Sink	4 count	USB 2.0	-40 °C	85 °C	0 GB	1 GB	2.756 in	3.937 in	eMMC microSD	HDMI MIPI-DSI	SBC	ARM Cortex-A9	RJ45 (10/100/1000)	GPIO MIPI CSI MIPI DSI mPCIe UART
SolidRun LTD SRMX6DLW00D01GE000X01CE	No	2	1 GHz		4 count	USB 2.0	0 °C	70 °C	0 GB	1 GB			eMMC microSD	HDMI	SBC	ARM Cortex-A9	RJ45 (10/100/1000)	Audio GPIO MIPI CSI mPCIe UART
SolidRun LTD SRMX6DLW00D01GE128G01IE	No	2	1 GHz		4 count	USB 2.0	-40 °C	85 °C	0 GB	1 GB	2.756 in	3.937 in	eMMC microSD	HDMI MIPI-DSI	SBC	ARM Cortex-A9	RJ45 (10/100/1000)	GPIO MIPI CSI MIPI DSI mPCIe UART
SolidRun LTD SRMX6DLW00D01GE008V20I0	No	2	1 GHz		4 count	USB 2.0	-40 °C	85 °C	0 GB	1 GB			eMMC microSD	HDMI	SBC	ARM Cortex-A9	RJ45 (10/100/1000)	Audio GPIO MIPI CSI mPCIe UART
SolidRun LTD SRMX6DLW00D01GE000G01IH	No	2	1 GHz	Heat Sink	4 count	USB 2.0	-40 °C	85 °C	0 GB	1 GB	2.756 in	3.937 in	eMMC microSD	HDMI MIPI-DSI	SBC	ARM Cortex-A9	RJ45 (10/100/1000)	GPIO MIPI CSI MIPI DSI mPCIe UART
SolidRun LTD SRMX6DLW00D01GE008E00CH		2	1.2 GHz		2 count	USB 2.0			1 GB	4 GB	2.72 in	4.02 in	eSATA M.2 uSD	HDMI LVDS MIPI		ARM Cortex-A9 i.MX6DualLite		mPCIe	36 lines	100Mbps 10Mbps	1
SolidRun LTD SRMX6DLW00D01GE064E01IH	No	2	1 GHz	Heat Sink	4 count	USB 2.0	-40 °C	85 °C	0 GB	1 GB	2.756 in	3.937 in	eMMC M.2 microSD	HDMI LVDS MIPI DSI	SBC	ARM Cortex-A9	RJ45 (10/100/1000)	GPIO LVDS M.2 MIPI CSI MIPI DSI mPCIe UART
SolidRun LTD SRMX6DLW00D01GE128E01CE	No	2	1 GHz		4 count	USB 2.0	0 °C	70 °C	0 GB	1 GB	2.756 in	3.937 in	eMMC M.2 microSD	HDMI LVDS MIPI DSI	SBC	ARM Cortex-A9	RJ45 (10/100/1000)	GPIO LVDS M.2 MIPI CSI MIPI DSI mPCIe UART
SolidRun LTD SRMX6DLW00D01GE128V20I0	No	2	1 GHz		4 count	USB 2.0	-40 °C	85 °C	0 GB	1 GB			eMMC microSD	HDMI	SBC	ARM Cortex-A9	RJ45 (10/100/1000)	Audio GPIO MIPI CSI mPCIe UART
SolidRun LTD SRMX6DLW00D01GE064G01CE	No	2	1 GHz		4 count	USB 2.0	0 °C	70 °C	0 GB	1 GB	2.756 in	3.937 in	eMMC microSD	HDMI MIPI-DSI	SBC	ARM Cortex-A9	RJ45 (10/100/1000)	GPIO MIPI CSI MIPI DSI mPCIe UART

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SRMX6DLW00D01GE000V15A0 | Datasheet
