CY2545QI

Active

Infineon Technologies

CLOCK GENERATOR 8MHZ TO 166MHZ-IN 166MHZ-OUT 24-PIN QFN EP TRAY

Search across all available documentation for this part.

Active

Infineon Technologies

CLOCK GENERATOR 8MHZ TO 166MHZ-IN 166MHZ-OUT 24-PIN QFN EP TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	CY2545QI

Differential - Input:Output	False
Divider/Multiplier	Yes/No
Frequency - Max [Max]	166 MHz
Input	Crystal, Clock
Mounting Type	Surface Mount
Number of Circuits	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Clock

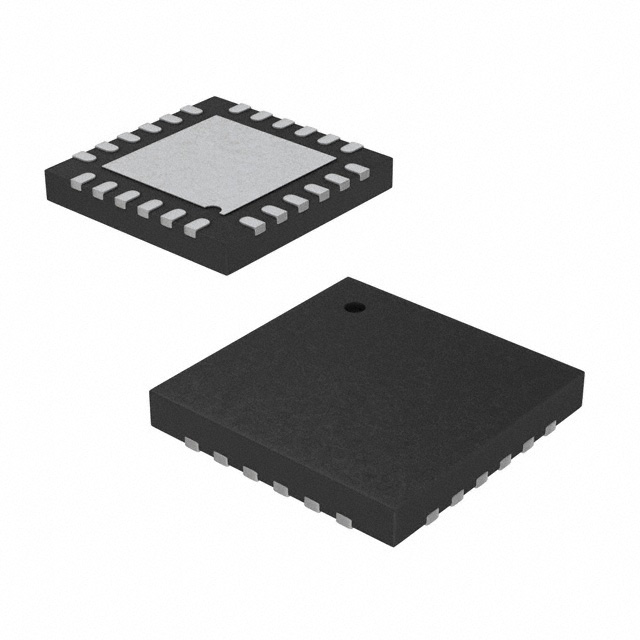

Package / Case	24-UFQFN Exposed Pad
PLL	Yes with Bypass
Ratio - Input:Output [custom]	8
Ratio - Input:Output [custom]	2
Supplier Device Package	24-QFN (4x4)
Type	Fractional N Synthesizer, Fanout Distribution, Multiplexer, Spread Spectrum Clock Generator
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.25 V

Part	Output	PLL	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Input	Voltage - Supply [Max]	Voltage - Supply [Min]	Ratio - Input:Output [custom]	Ratio - Input:Output [custom]	Number of Circuits	Type	Divider/Multiplier	Package / Case	Frequency - Max [Max]
Infineon Technologies CY2545QI	Clock	Yes with Bypass	24-QFN (4x4)	85 °C	-40 °C	Surface Mount	Clock Crystal	3.6 V	2.25 V	8	2	4	Fanout Distribution Fractional N Synthesizer Multiplexer Spread Spectrum Clock Generator	Yes/No	24-UFQFN Exposed Pad	166 MHz
Infineon Technologies CY2545QC022T	Clock	Yes with Bypass	24-QFN (4x4)	70 °C	0 °C	Surface Mount	Clock Crystal	3.6 V	2.25 V	8	2	4	Fanout Distribution Fractional N Synthesizer Multiplexer Spread Spectrum Clock Generator	Yes/No	24-UFQFN Exposed Pad	166 MHz
Infineon Technologies CY2545QC021T	Clock	Yes with Bypass	24-QFN (4x4)	70 °C	0 °C	Surface Mount	Clock Crystal	3.6 V	2.25 V	8	2	4	Fanout Distribution Fractional N Synthesizer Multiplexer Spread Spectrum Clock Generator	Yes/No	24-UFQFN Exposed Pad	166 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	490	$ 12.59

General part information

Fanout Distribution, Fractional N Synthesizer, Multiplexer, Spread Spectrum Clock Generator IC 166MHz 4 24-UFQFN Exposed Pad
