Description
General part information

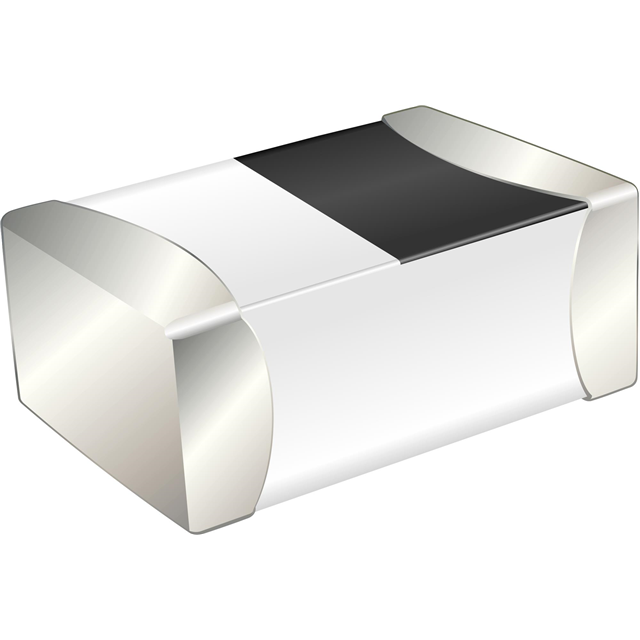

LMCI1608-3N9ST
3.9 nH Shielded Multilayer Inductor 500 mA 160mOhm 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | LMCI1608-3N9ST |
|---|---|
| Current Rating | 0.5 A |
| DC Resistance (DCR) | 160 mOhm |
| Frequency - Self Resonant | 6 GHz |
| Height - Seated (Max) | 0.037 in |
| Inductance | 3.9 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Q | 10 |
| Shielding | Shielded |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Tolerance | 0.3 nH |
| Type | Multilayer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
