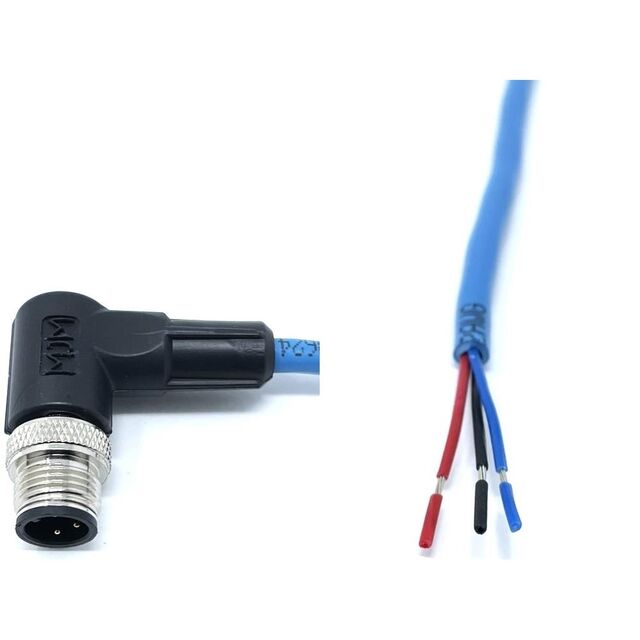

M12A03M9-0394C-X02
ActiveMJM Industries
CIRC CBL 3POS PLUG TO RCPT 32.8'
M12A03M9-0394C-X02
ActiveMJM Industries
CIRC CBL 3POS PLUG TO RCPT 32.8'
Description
General part information
M12A03M9-0394C-X02
Circular Cable Assembly Unshielded 32.8' (10.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A03M9-0394C-X02 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 3 positions |
| 1st Connector Number of Positions Loaded | 3 positions |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Type | Receptacle |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Blue |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 32.8 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
