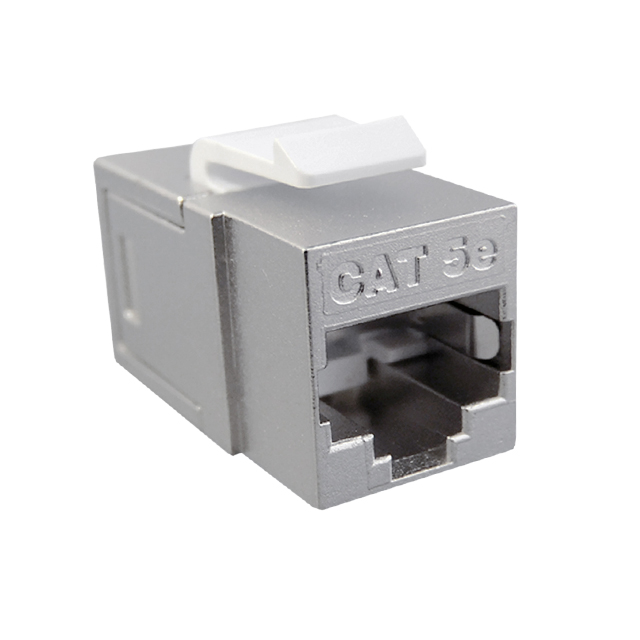

SS-82100-004

Active

Bel

MODULAR KEYSTONE CPLR CAT5E SHLD

Search across all available documentation for this part.

Active

Bel

MODULAR KEYSTONE CPLR CAT5E SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	SS-82100-004

Exterior Contact Finish	Gold
Exterior Contact Finish Thickness	1.27 Ám
Exterior Contact Finish Thickness	50 Áin
Exterior Contact Material	Phosphor Bronze
Exterior Housing Color	Silver
Exterior Housing Material	Zinc Alloy
Exterior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)
Features	Panel Lock, Panel Stops
Interior Contact Finish	Tin
Interior Contact Finish Thickness	2.54 µm
Interior Contact Finish Thickness	100 µin
Interior Contact Material	Phosphor Bronze
Interior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)
Ratings	Cat5e
Style	Modular

MODULAR KEYSTONE CPLR CAT5E SHLD

Part	Exterior Housing Material	Exterior Housing Color	Ratings	Exterior Contact Finish Thickness	Exterior Contact Finish Thickness	Interior Type (Adapter End)	Interior Contact Material	Exterior Contact Material	Exterior Type (Adapter End)	Features	Style	Interior Contact Finish	Exterior Contact Finish	Interior Contact Finish Thickness	Interior Contact Finish Thickness
Bel SS-82100-004	Zinc Alloy	Silver	Cat5e	1.27 Ám	50 Áin	Modular Jack 8p8c (RJ45, Ethernet)	Phosphor Bronze	Phosphor Bronze	Modular Jack 8p8c (RJ45, Ethernet)	Panel Lock, Panel Stops	Modular	Tin	Gold	2.54 µm	100 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Insert Modular Jack 8p8c (RJ45, Ethernet) To Modular Jack 8p8c (RJ45, Ethernet) Silver
