289-201
ActiveWAGO Corporation

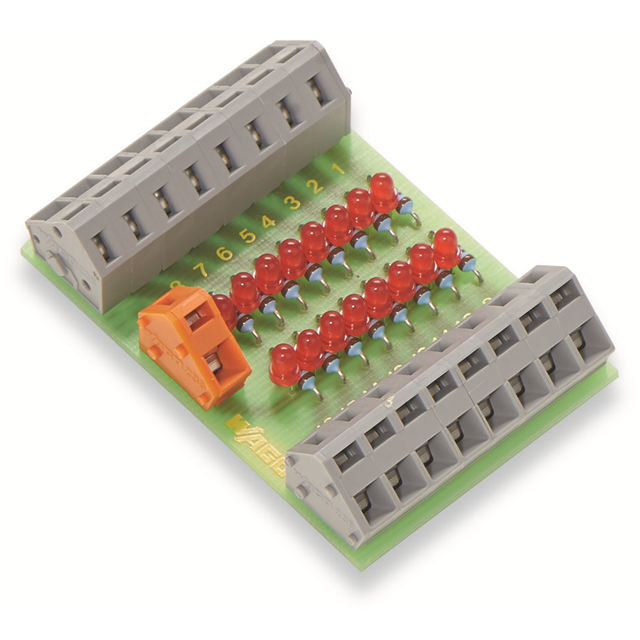

COMPONENT MODULE-I 16X RED
289-201
ActiveWAGO Corporation
COMPONENT MODULE-I 16X RED
Description
General part information
289-201
8 Position Interface Module Terminal Blocks - Screw Connection To Terminal Blocks - Screw Connection 12-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 289-201 |
|---|---|
| Control Side Connection | Terminal Blocks, Screw Connection |
| Current Rating (Per Contact) | 5.6 mA |
| Features | LED |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -25 °C |
| Positions / Poles | 8 |
| Process Side Connection | Terminal Blocks, Screw Connection |
| Voltage - Rated | 26 VDC |
| Width | 1.85 in |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
