FMDV1065
ActiveFairview Microwave

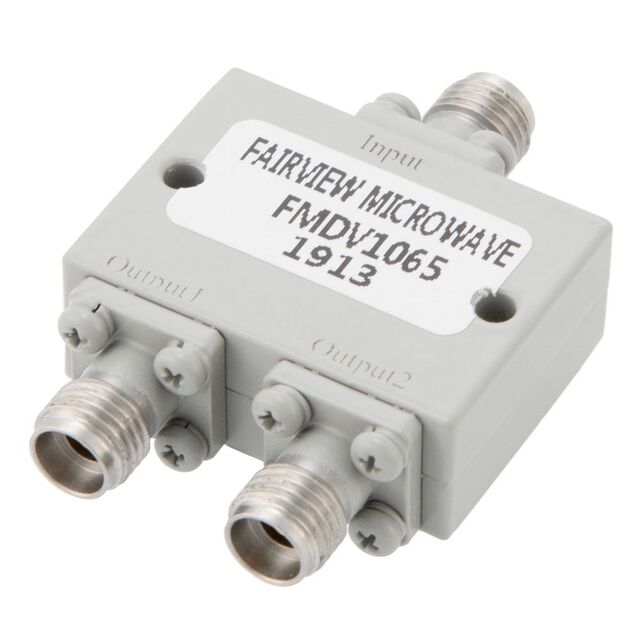

POWER DIVIDER 40 GHZ 2.92MM
FMDV1065
ActiveFairview Microwave
POWER DIVIDER 40 GHZ 2.92MM
Description
General part information
FMDV1065
RF Power Divider 26.5 GHz ~ 40 GHz Isolation (Min) 16dB, 4° Imbalance (Max), 1.6 VSWR (Max) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | FMDV1065 |
|---|---|
| Frequency (Max) | 40 GHz |
| Frequency (Min) | 26.5 GHz |
| Imbalance (Max) | 4 ° |
| Insertion Loss | 0.8 dB |
| Isolation (Min) | 16 dB |
| Package / Case | Module |
| Size / Dimension Height | 0.404 in |
| Size / Dimension Length | 1.024 in |
| Size / Dimension Width | 0.748 in |
| VSWR (Max) | 1.6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
